Make New Entry, Make Followup Entry
User name Kalyan
Log entry time 15:02:02 on November22,2008
Entry number 250338
Followups:
keyword=BCM u3 and d3 scaler info for every eventBCM u3 and d3 signals in the scalers(both gated and ungated) are stored in the data for every event. The standard scaler replay provides this information for every 100 events only. I modified Bob's scaler decoding script to get the u3 and d3 signals for every event. This is a standalone code right now, but has to be integrated into the standard scaler replay at some point in the future.

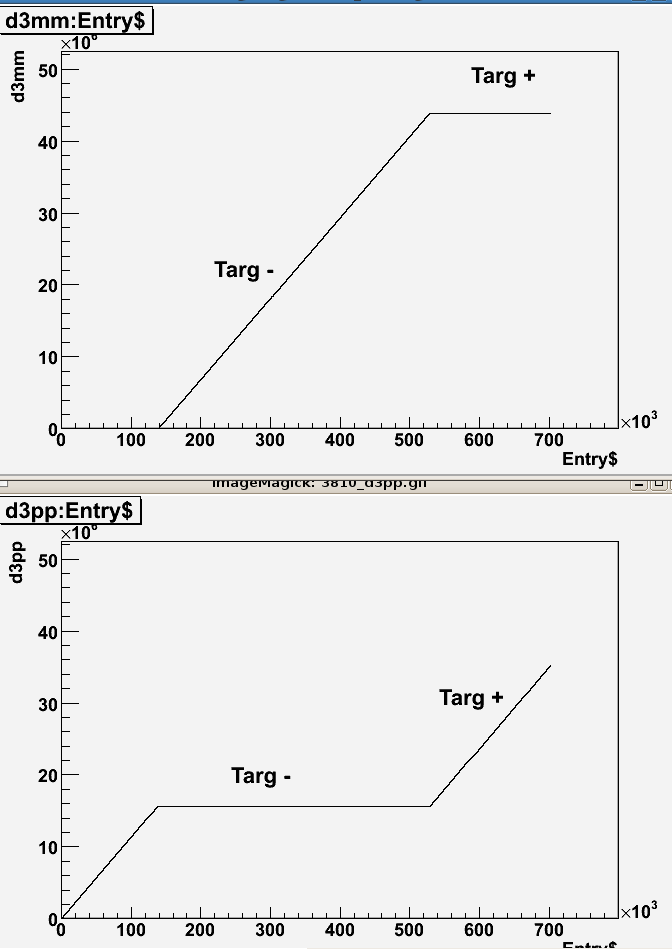

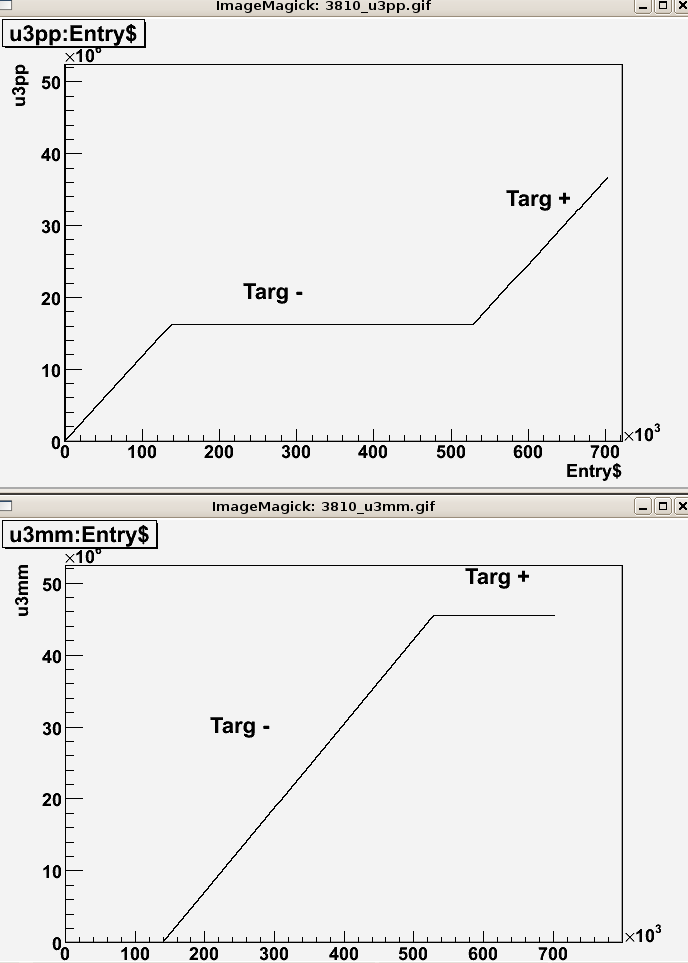

Below are the plots showing scaler counts every event for u3 and d3 for ++ and -- combinations for run 3810.
FIGURE 1
FIGURE 2
