User name Kalyan
Log entry time 16:52:10 on February 28, 2009
Entry number 263890
This entry is a followup to: 263768
keyword=BCM calibration : OLO2 vs Left HRS scalerHere are the calibration constants and offsets calculated from the L-HRS scalers. See previous log entry(263768) for the file names and OLO2 vs BCM1 and BCM2.
calib_d10 = 20952 calib_d13 = 6645.89 calib_d1 = 2147.88 calib_u1 = 2101.87 calib_u3 = 6464.39 calib_u10 = 19718.3off_d10 = 293.463 off_d3 = 133.319 off_d1 = 154.577 off_u1 = 395.804 off_u3 = 453.4 off_u10 = 770.516
A copy of this log entry has been emailed to: brads,vasulk

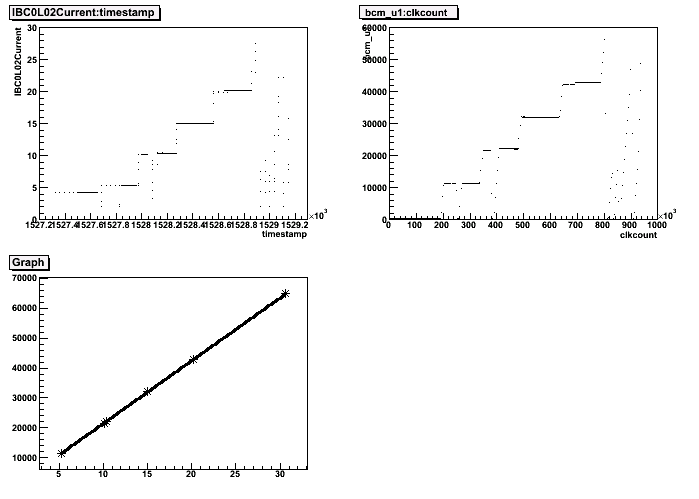

Figure 1

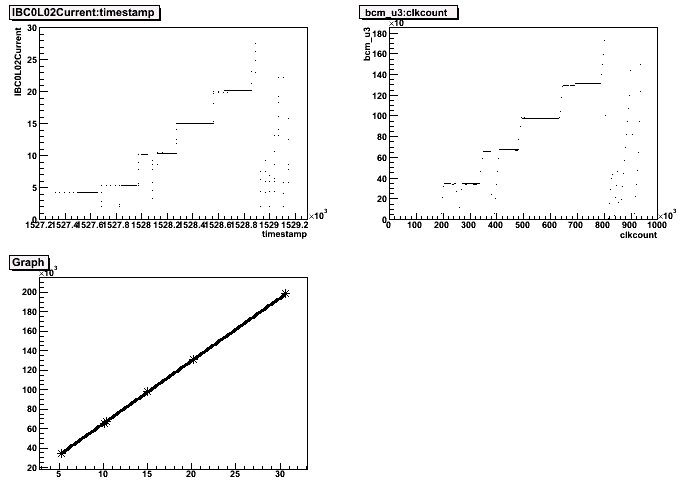

Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
