Log entry time 21:01:18 on May 22, 2009

Entry number 275595

During today access I went into the HRS-L spectrometer and added
another copy of BB scalers to the HRS-L scalers. I added them to
the following channels:

Trigger |  4616 output form BB | 4616 input to scalers | Scaler number
======================================================================
  T1    |         Ch. 8        |      Mod.2 Ch. 11     |   27
  T2    |         Ch. 9        |      Mod.2 Ch. 14     |   30
  T5    |         Ch. 13       |      Mod.2 Ch. 15     |   31
  T6    |         Ch. 11       |      Mod.2 Ch. 16     |   32

Afterward I also modified the "scaler.map" file so that labels would
be correct in the scaler GUI. I stored the old copy of that file to
"scaler_22May09.map"

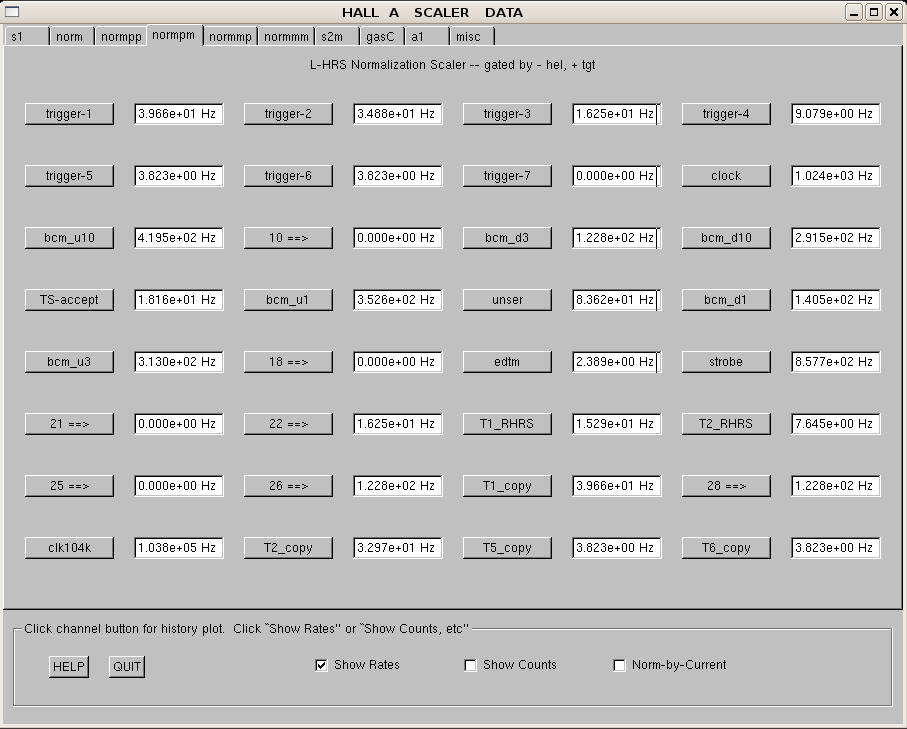

Figure 1

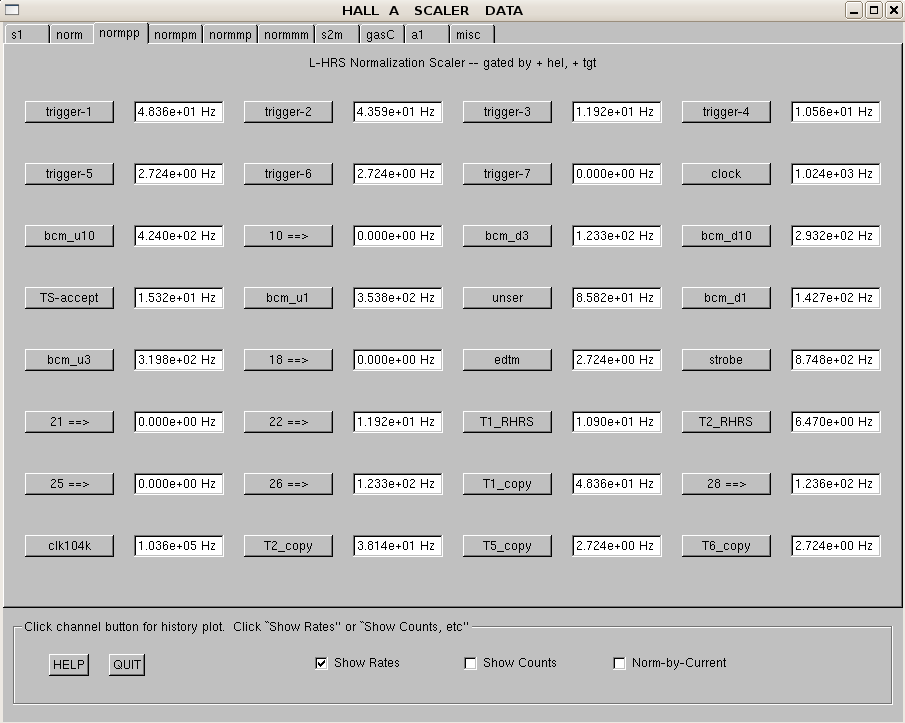

Figure 2

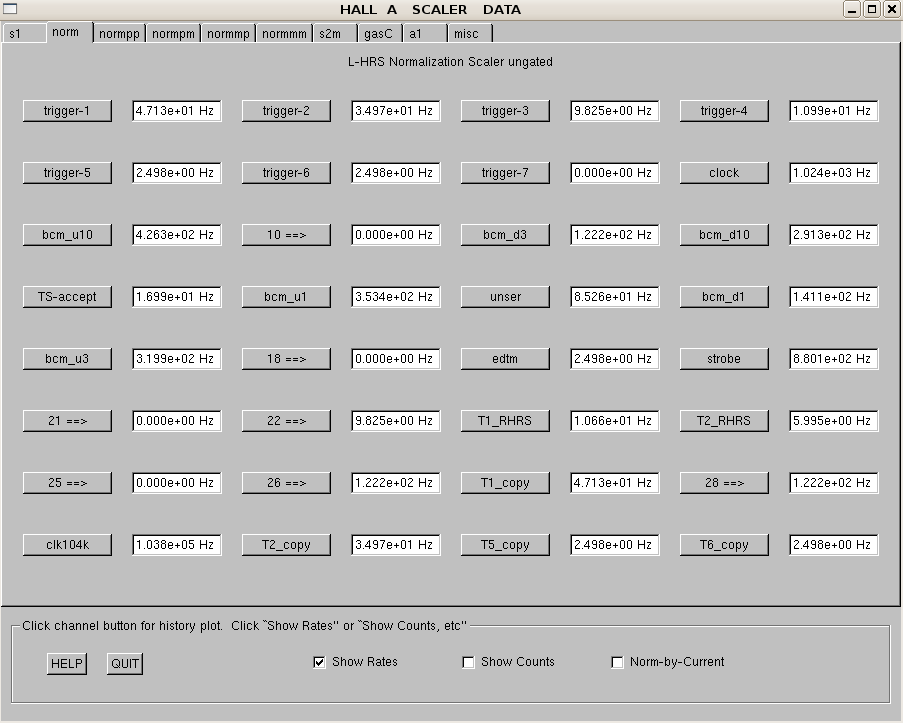

Figure 3
