Make New Entry, Make Followup Entry
User name miham
Log entry time 03:27:36 on May27,2009
Entry number 276746
keyword=Spot++ check (#2803)Here are the results of the Spot++ check. The beam spot
looks fine, Spot size is 4x4mm and we are not hitting anything.
-------------------------------------
Beam current = 10.3uA
BPMa = (-0.493, 2.154)
BPMb = (-0.507, 1.975)

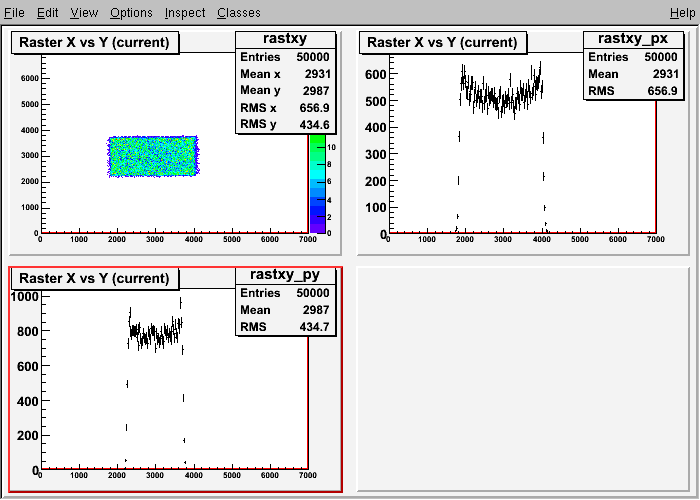

FIGURE 1

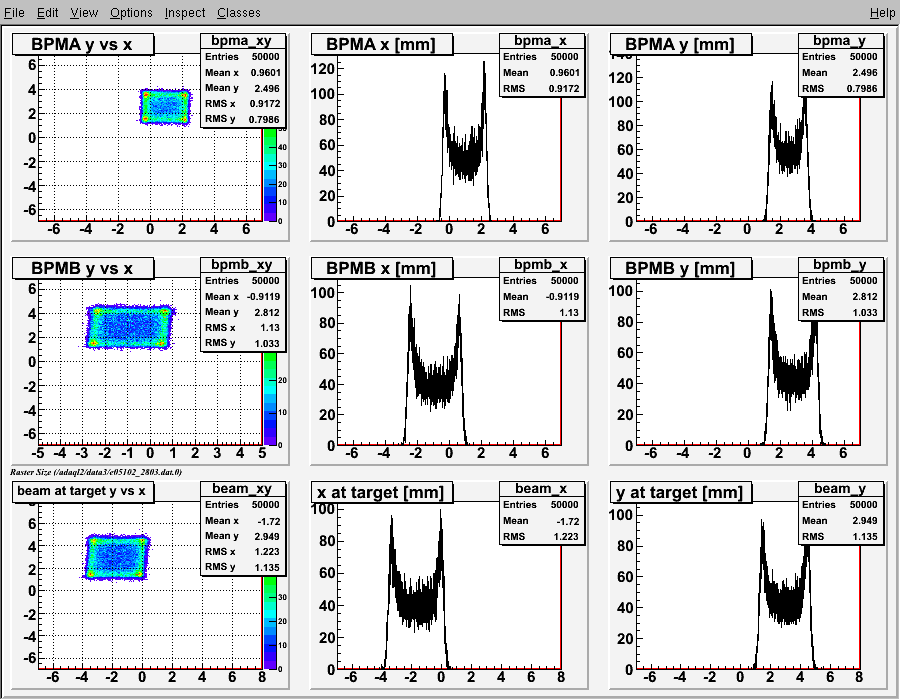

FIGURE 2
