keyword=HAND: The Good, the Bad, and the UglyThe Good:
· V-22L (21 counting from 0) looks good again! Horray! (see Figure 1)
· The 4 PMTs in Plane 3 (N3-11L, N3-12, N3-11R, N3-12R) are no longer saturated! ...but...
The Bad:
· 3 of the TDCs from Plane 3 are no longer showing (see Figures 2 and 3). We went down in HV too much! Oops...going to raise them back up between runs
The Ugly:
· The ADC for N2-5L (4 counting from zero) has disappeared (Figure 4) but the TDC is still good (Figure 5)
→ While in the Hall, I accidentally dropped a small connector inbetween the ADC wires. It's entirely possible that I accidentally knocked the cable for this one and it just need to get pushed back in.
Other than that, all looks well for the HAND.

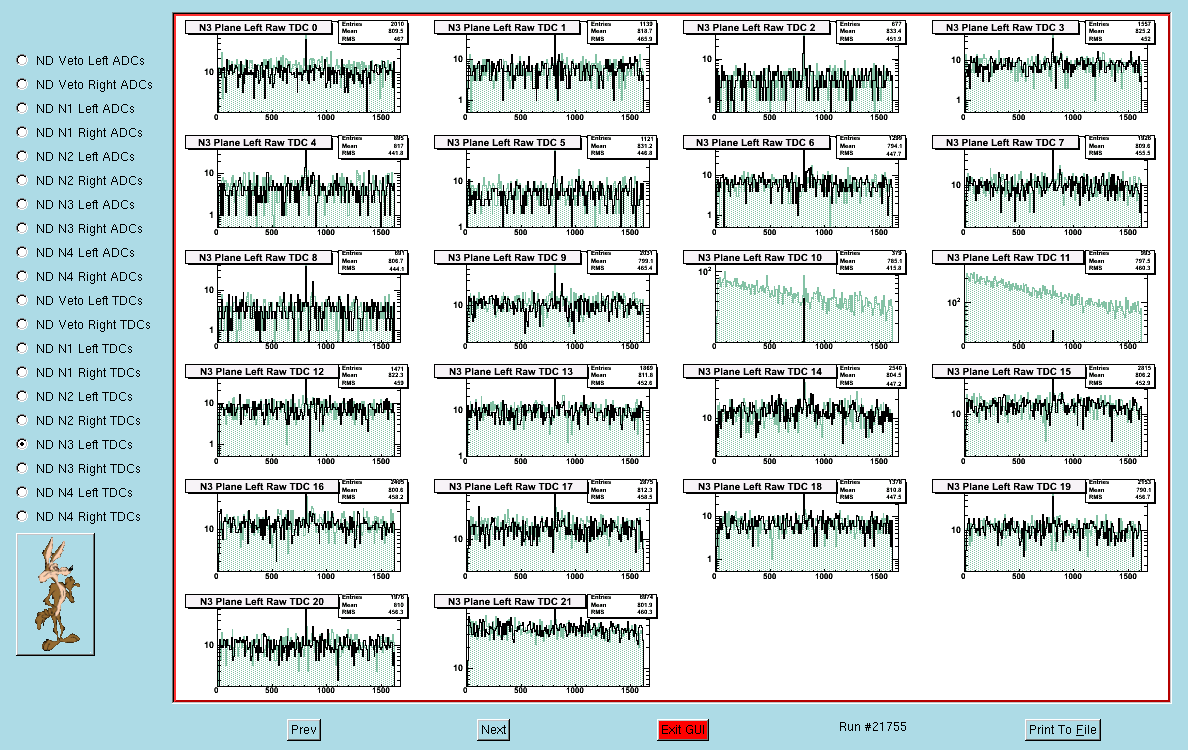

Figure 1

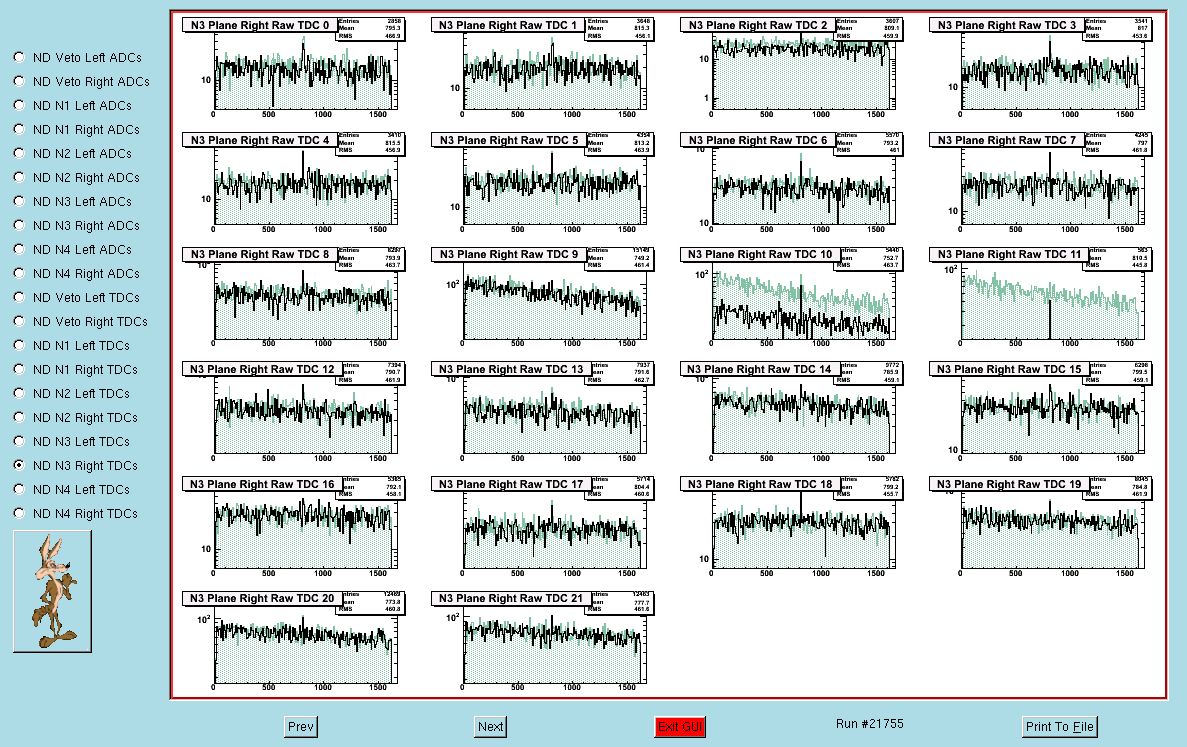

Figure 2

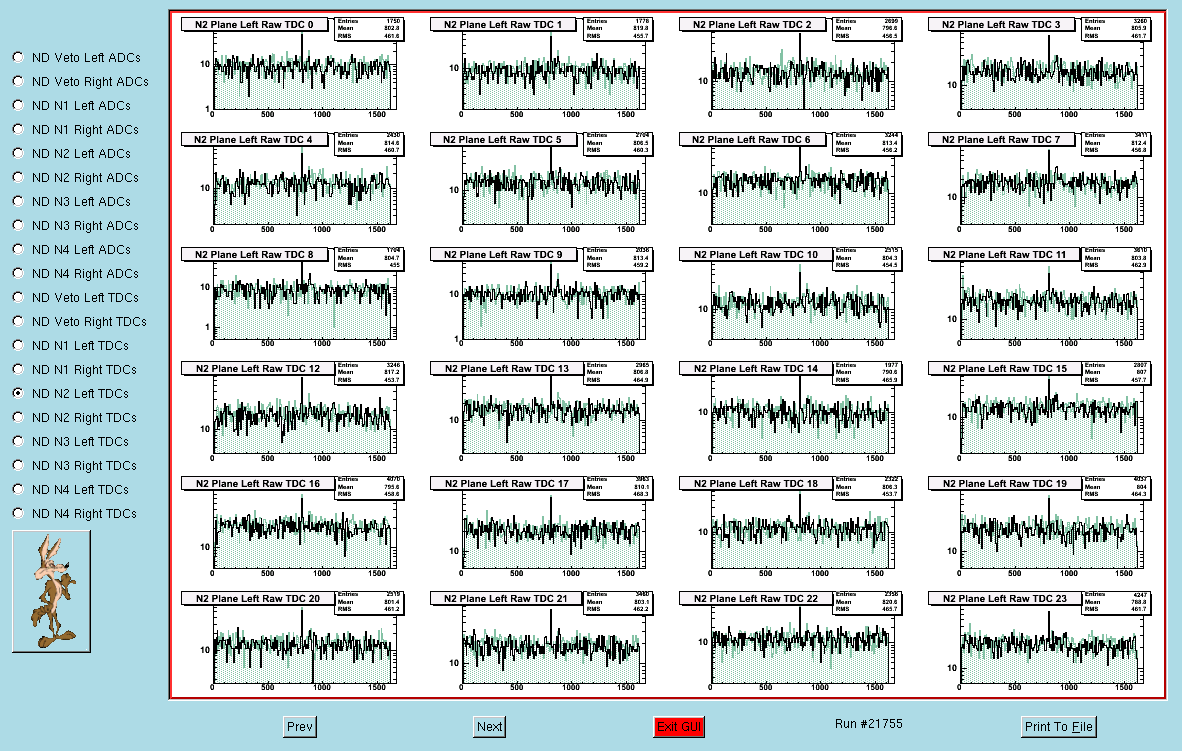

Figure 3

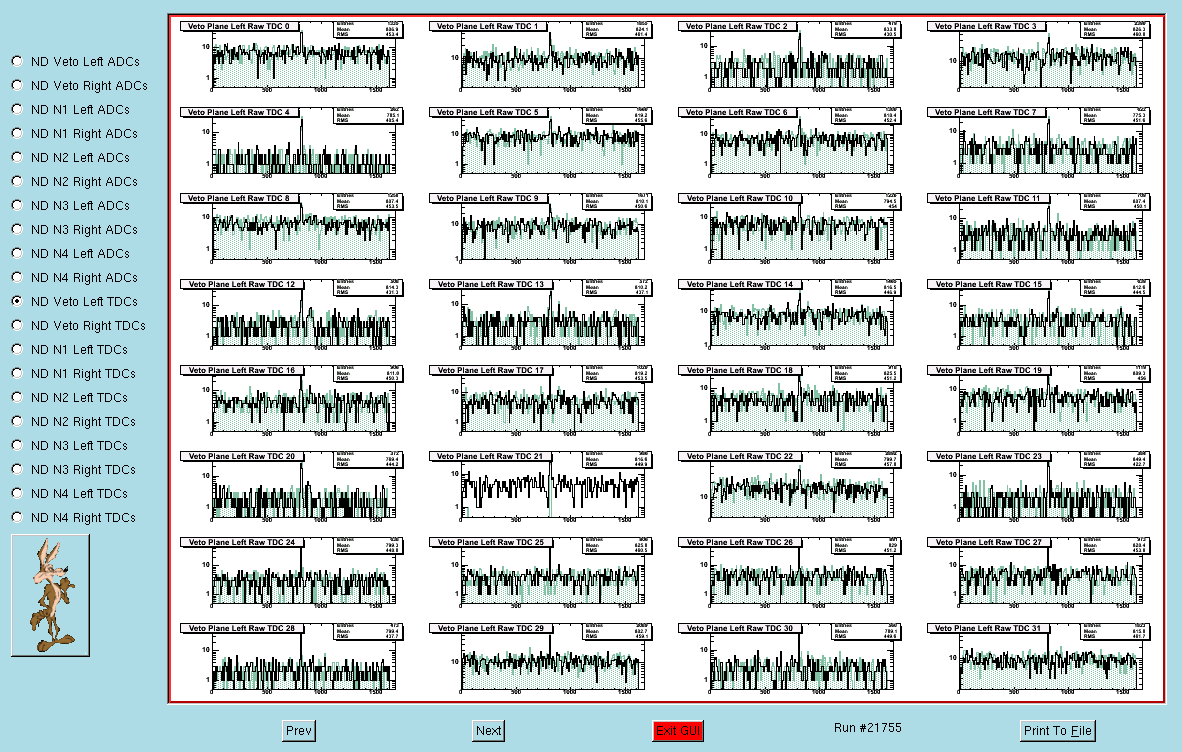

Figure 4
Figure 5
