    User name R. Michaels

    Log entry time 05:22:38 on October23,2009

    Entry number 296227

    keyword=sensitivity of current monitor

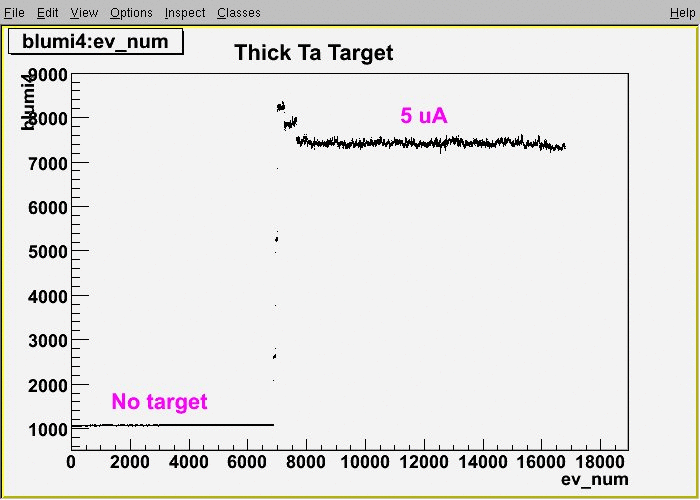

    Using the Blumi with thick Ta we see approx 7000 channels
    for 5 uA.  Therefore at 50 nA we'll see 70 channels, barely
    good enough to judge the current.
    We will proceed with low-I cavity test.

    FIGURE 1
