    User name ellie

    Log entry time 09:52:48 on October25,2009

    Entry number 296603

    keyword=Strange Target and Cavity BPM Correlations

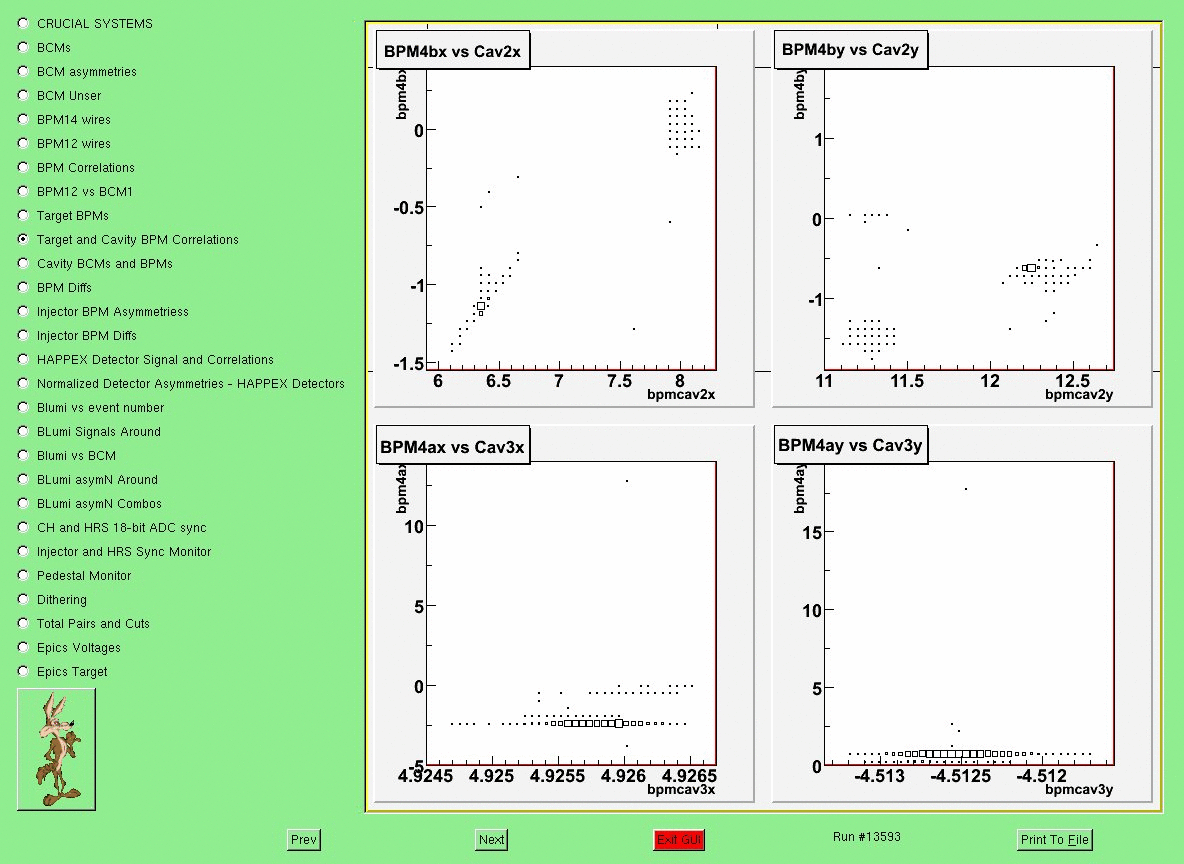

    Upon analyzing Run 13593 (Below, Figure 1), the Target Cavity BPM Correlations
    looks strange. Previous runs analyzed (13592, 13591) had straight lines from
    the bottom left to the upper right. I reanalyzed both of those runs to show the
    difference, but when that happened the plots changed to similar to the 13593

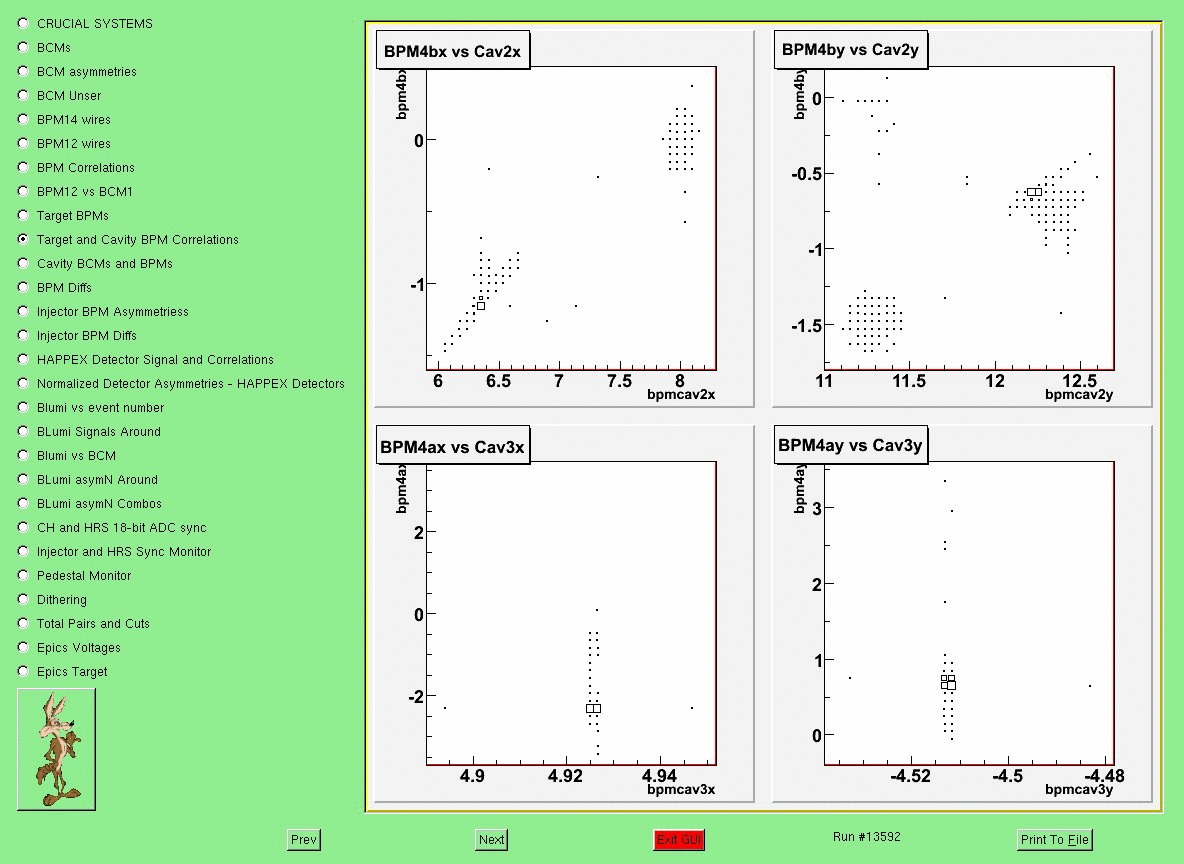

    plots (13592 is below, Figure 2). Both SL and I are confused as to what's
    happening here...

    FIGURE 1

    FIGURE 2
