    User name liye

    Log entry time 16:45:11 on October25,2009

    Entry number 296654

    keyword=target Parameter change

    at 16:30 there was a cryflows trip and the target temp droped very fast,the heater seemed didn't have enough power to keep the target temp.So we change the PID Parameters PID Output MAX 600 to 700.

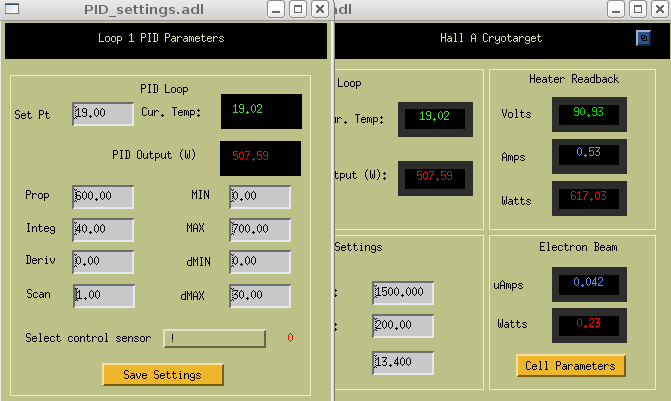

    FIGURE 1

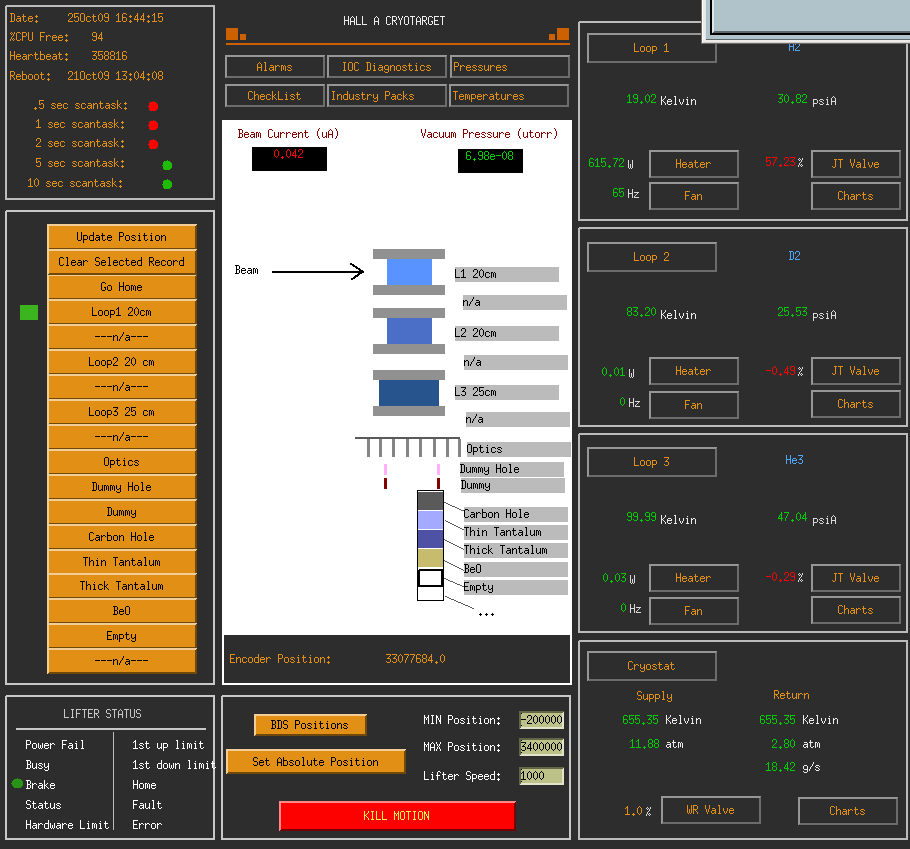

    FIGURE 2
