    User name mcnulty

    Log entry time 20:04:14 on October26,2009

    Entry number 296756

    keyword=MCC doesn't understand raster size problem

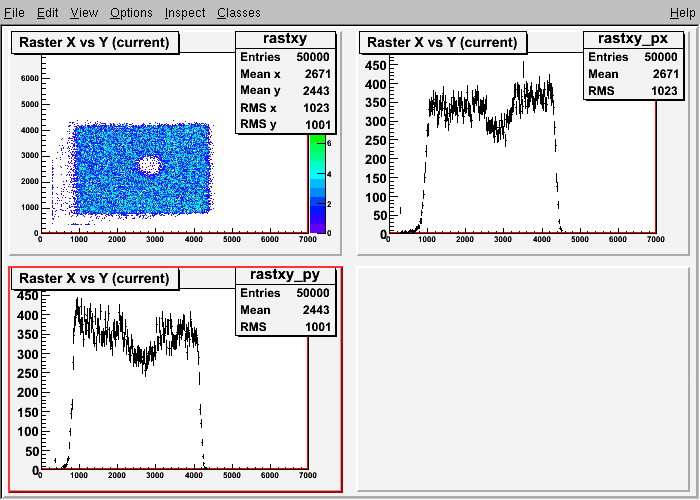

    We asked MCC to give us the bigest raster size they can right now (which is 11.13by11.13). This gives a raster current of about 35A for both x and y coils. Spot++ on holey carbon target at 10uA ( run 25121) gives 5mm in x by 4mm in y. The hole fairly well centered (but not perfect) and there is a very slight slope to the raster current scan (more than usual).

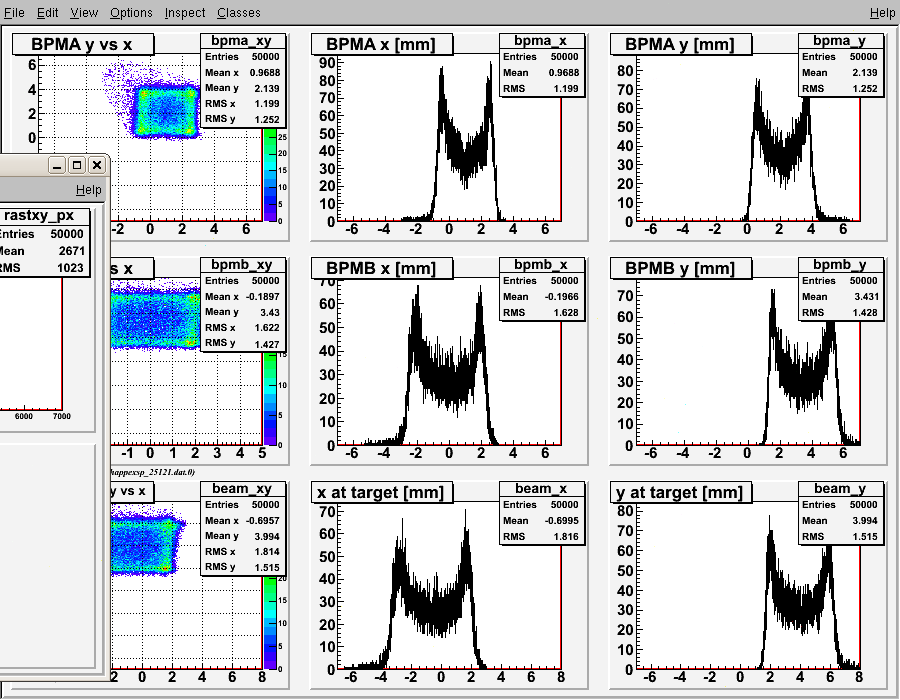

    BPM positions are:


    FIGURE 1

    FIGURE 2
