    User name mcnulty

    Log entry time 20:07:40 on October26,2009

    Entry number 296758

    keyword=Another spot++ after beam steering a bit

    We asked MCC to steer the beam +200um in x and +150um in y. Doing spot++ again. Run 25122. The resutls are the same for raster size and the hole is now centered better. Note the raster square is not as crisp as it usually is.

    By: 2.1

    We will now start our empty loop 3 measurements.

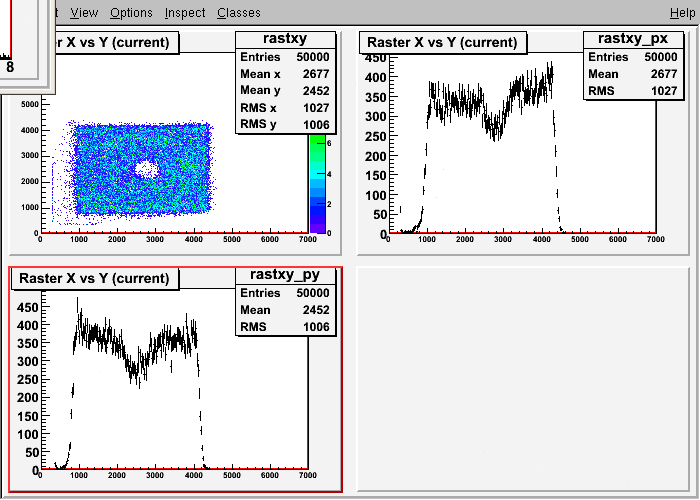

    FIGURE 1

    FIGURE 2
