User name D.Wang
Log entry time 12:07:49 on November20,2009
Entry number 301314
This entry is a followup to: 301304
keyword=bad scaler channelsThe three scaler channels corresponding to right arm pion narrow group 1-3 are not functioning properly. Figure one is the raw scaler counts for group 1 (group 2 and 3 are the same). There're multiple peaks with spacing of 16. Figure 2 is the plot of a normal channel (group 4) for comparison. We might need to replace this scaler later.

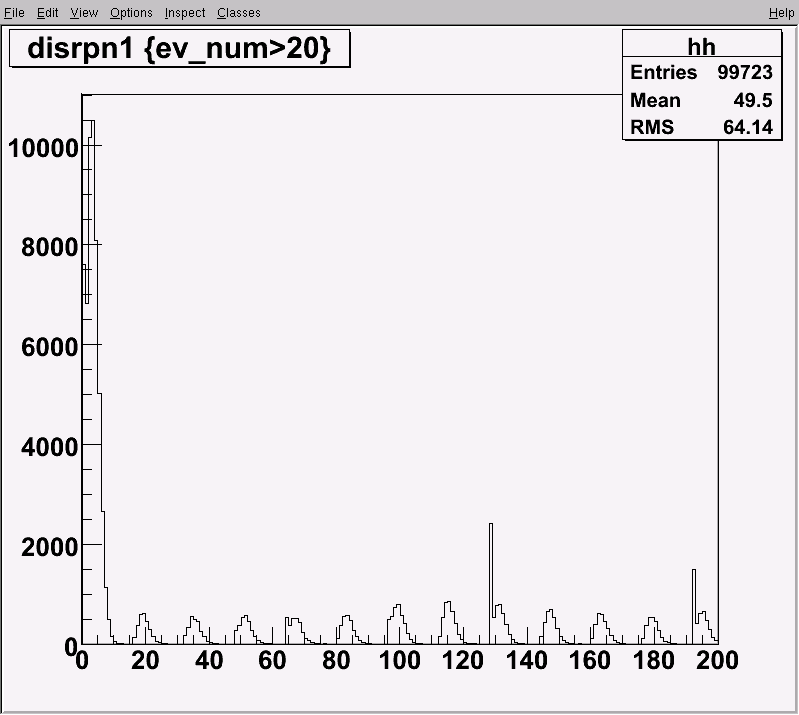

FIGURE 1

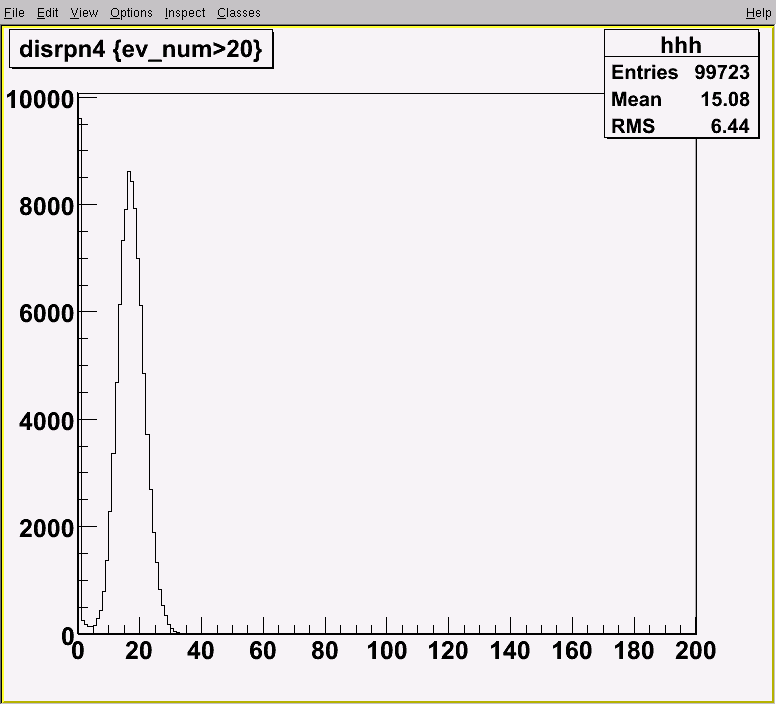

FIGURE 2
