    User name mercado

    Log entry time 16:27:34 on November20,2009

    Entry number 301403

    This entry is a followup to: 301386

    keyword=BCM1 acting strange at the end of run 14094

    Looks like something very strange started happening with BCM1.

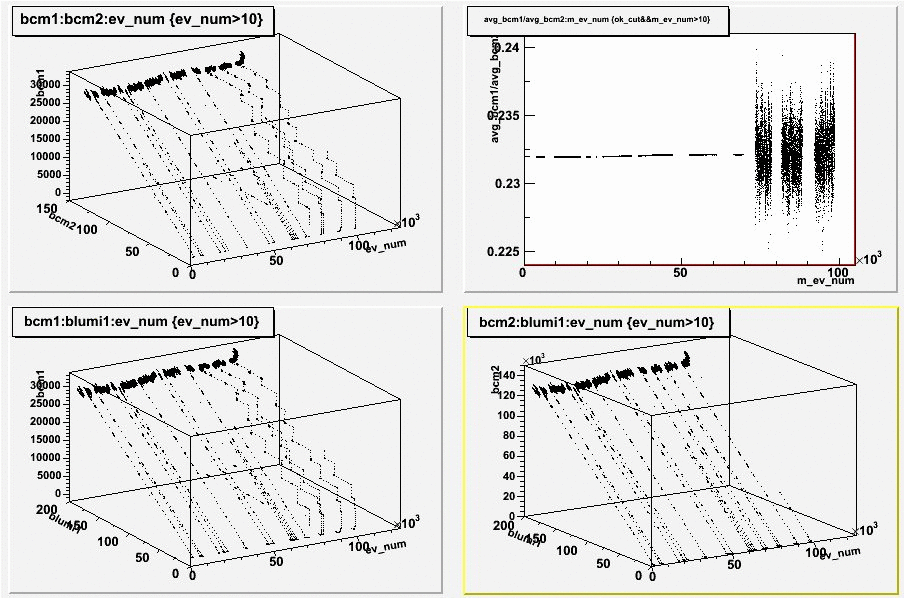

    At first I thought it might be a sync problem, but we see the strangeness when
    comparing two signals from the same crate, BCM1 and BCM2 (top two plots).

    To see which signal is correct, I compared each one to a lumi signal (bottom
    two plots).

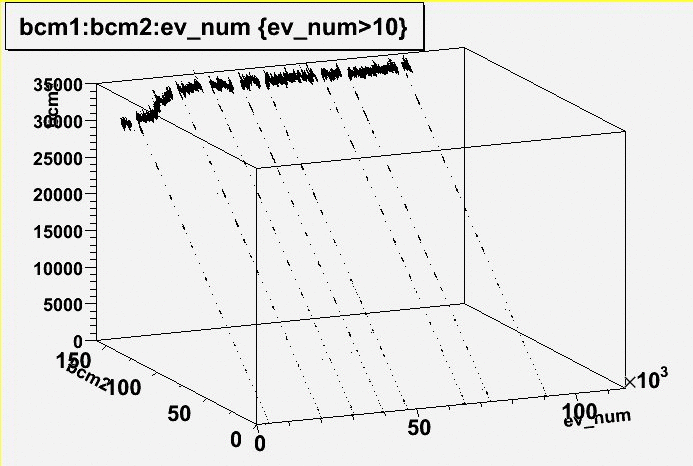

    So it looks like for some unknown reason, the 16bit ADC to which BCM1 is
    connected went nuts at the end of run 14094, but was fine by the beginning of
    the next run, as shown in attachment 2.



    FIGURE 1

    FIGURE 2
