Make New Entry, Make Followup Entry
User name A. Camsonne
Log entry time 15:56:52 on November26,2009
Entry number 302816
keyword=Compton electron Run 21246 hit patternPosition 30 mm from the beam, thresold 22.
2 plane coincidence, or width of 4.
Plan B,C and D seems to have reasonable distribution.
Strips are a bit noisy around strip 19.
Big noise starting at strip 64 in all 3 planes.
Plane A still gets hits while disabled. Only first 96 strips enabled.
Some hits beyond channel 96. Will check efficiency when standard decoding is done

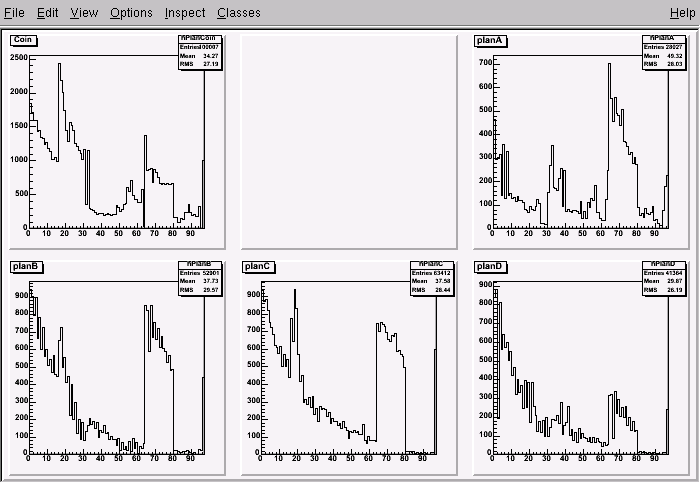

FIGURE 1

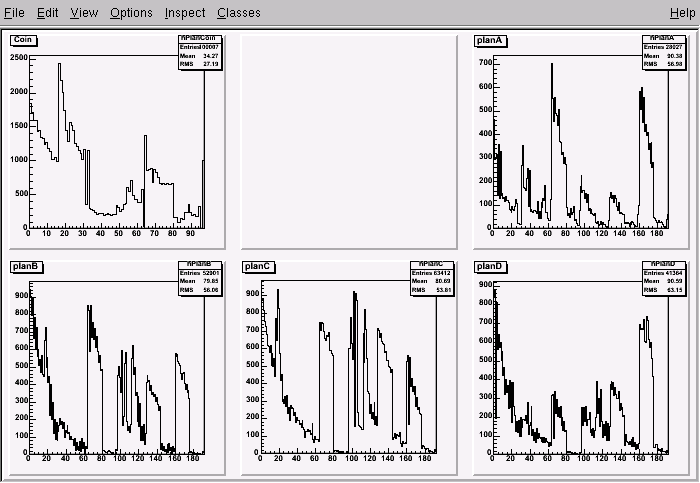

FIGURE 2
