Make New Entry, Make Followup Entry
User name Bob/deng
Log entry time 20:27:32 on November28,2009
Entry number 303372
keyword=Cavity monitor problems (part 1)Doing the expert shift check with a super expert looking over
my shoulder ...
It looks like the Cavity monitors are not working even a little bit.
The BCMCAV2 is at -50k (negative !). Neither BCMCAV2 nor CAV3
are correlated with BCM1 (see fig 2). I guess the gains or something
is totally screwed up.
Will plot BPMs in a followup.
How long this has been bad ... no idea.

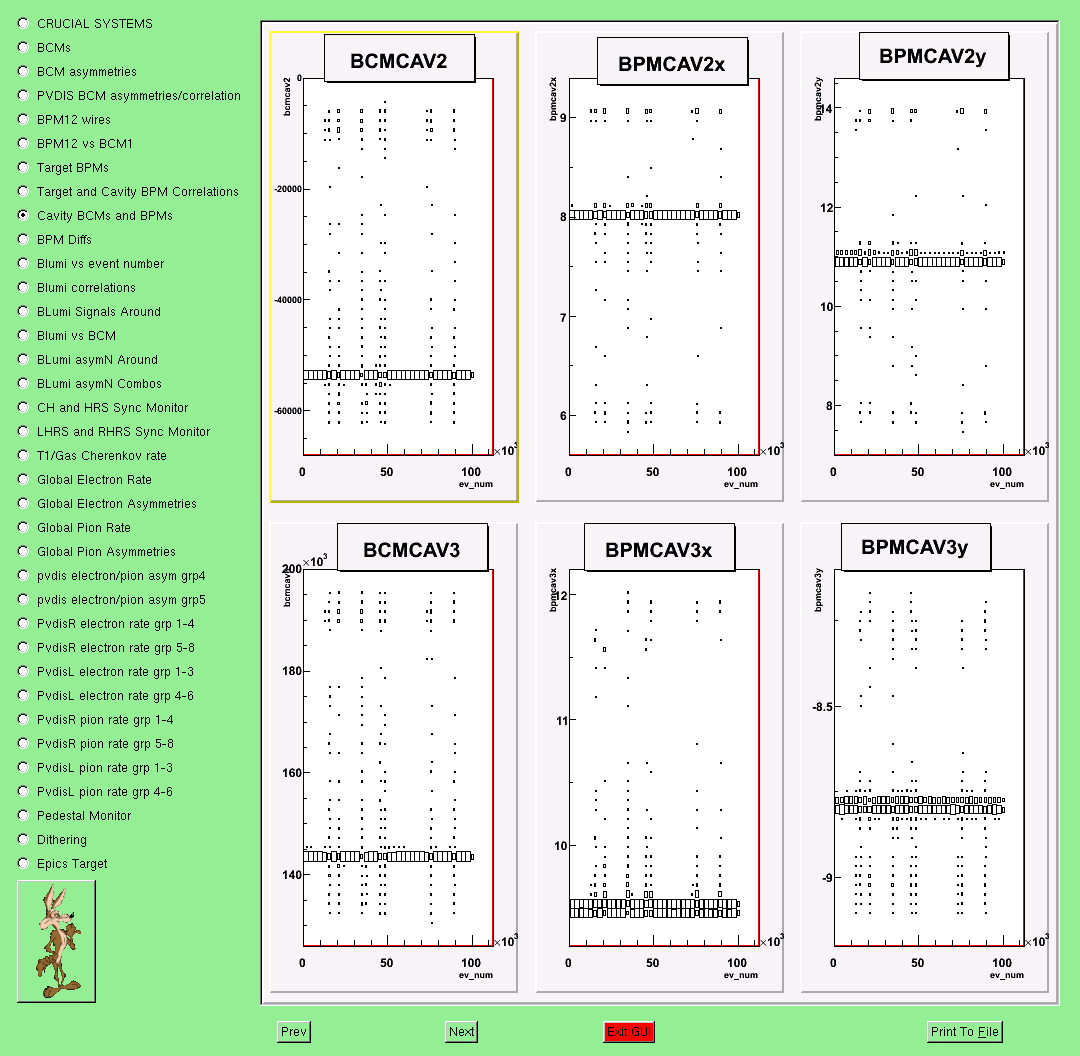

FIGURE 1

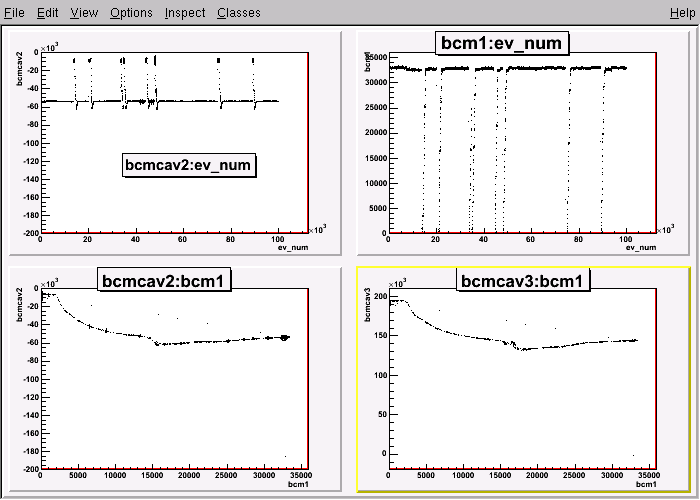

FIGURE 2
