    User name D.Wang/deng

    Log entry time 23:21:21 on November30,2009

    Entry number 303830

    This entry is a followup to: 303814

    keyword=large lumi width was due to smaller raster size

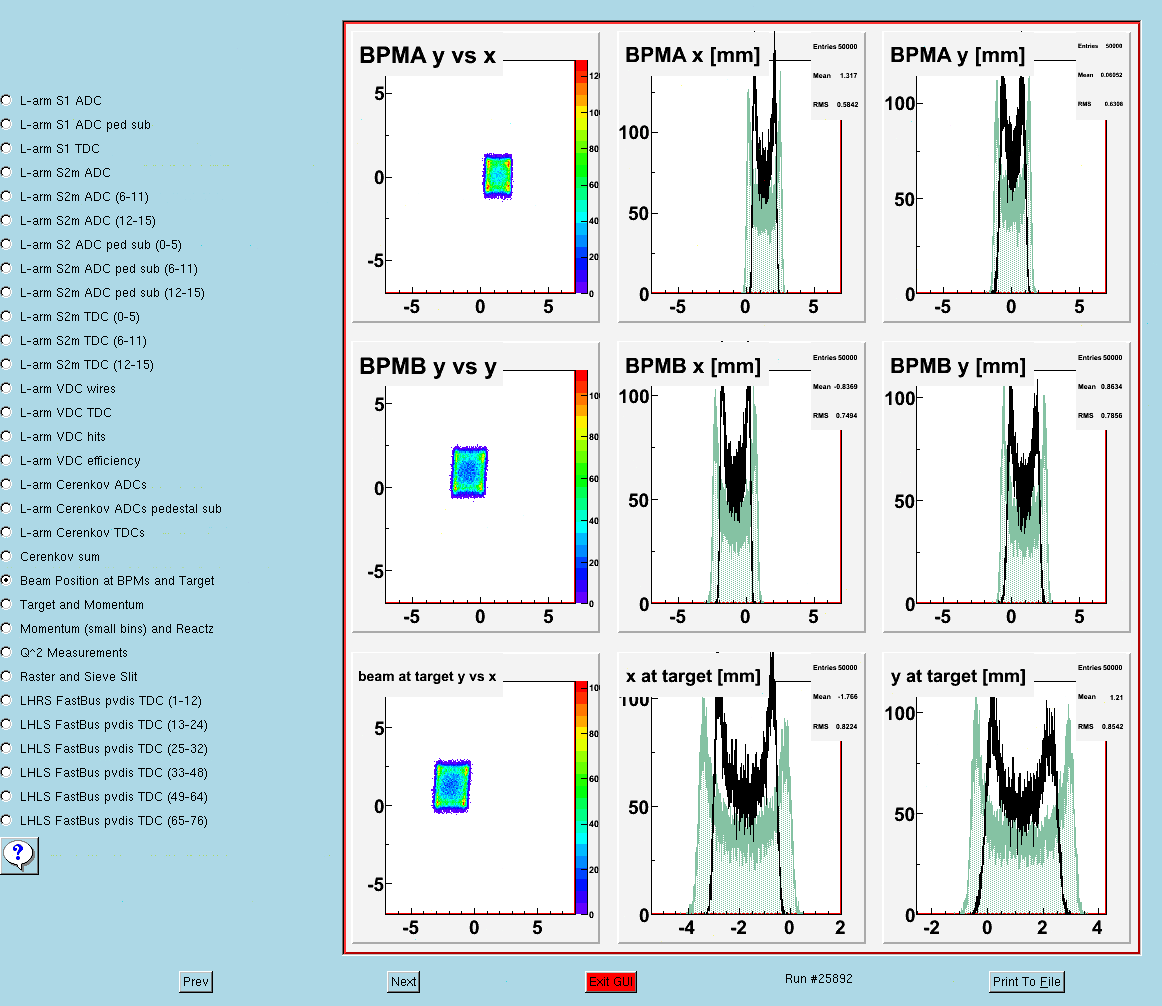

    We found from the replay results that the raster size was smaller compared to the golden run (first figure). However on the "Hall A Raster Control" gui, the numbers are 6x6. We called MCC to double check and they confirmed that it's 6x6. But right after the call, we see clearly on the scope that the raster size changed.

    Then we started a new run and the lumi width became normal now.

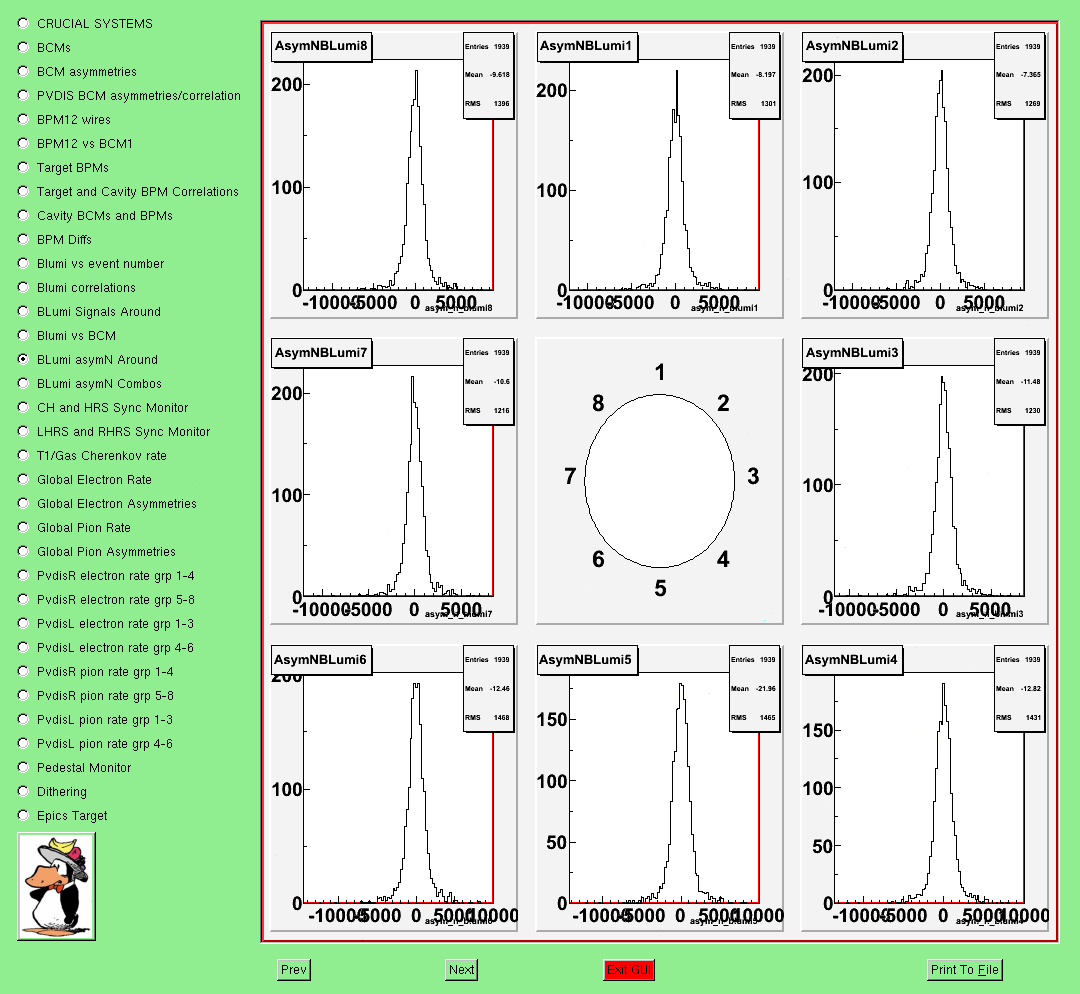

    FIGURE 1

    FIGURE 2
