Make New Entry, Make Followup Entry
User name efuchey
Log entry time 14:27:59 on October29,2010
Entry number 337372
keyword=QWP scan for 10/29/10Left state (Fig 1):
####### RESULTS ########
delta=4.12229 +/- 0.0308035 degree
Ellipse parameters:
Axis Ratio=0.732752 +/- 0.001316
==> DOCP from ellipse param=95.353 +/- 0.0515977 %
==> DOCP from Stokes param=95.1866 +/- 0.0994304 %
Angle=-22.3526 +/- -0.183469 degrees
==> retardation error=3.11969 +/- 0.36522 %
Right state (Fig2):
####### RESULTS ########
delta=4.26377 +/- 0.0299877 degree
Ellipse parameters:
Axis Ratio=-0.67361 +/- 0.00099531
==> DOCP from ellipse param=-92.672 +/- 0.0514516 %
==> DOCP from Stokes param=-92.6672 +/- -0.10093 %
Angle=78.8789 +/- -0.163306 degrees
==> retardation error=3.39764 +/- 0.21589 %

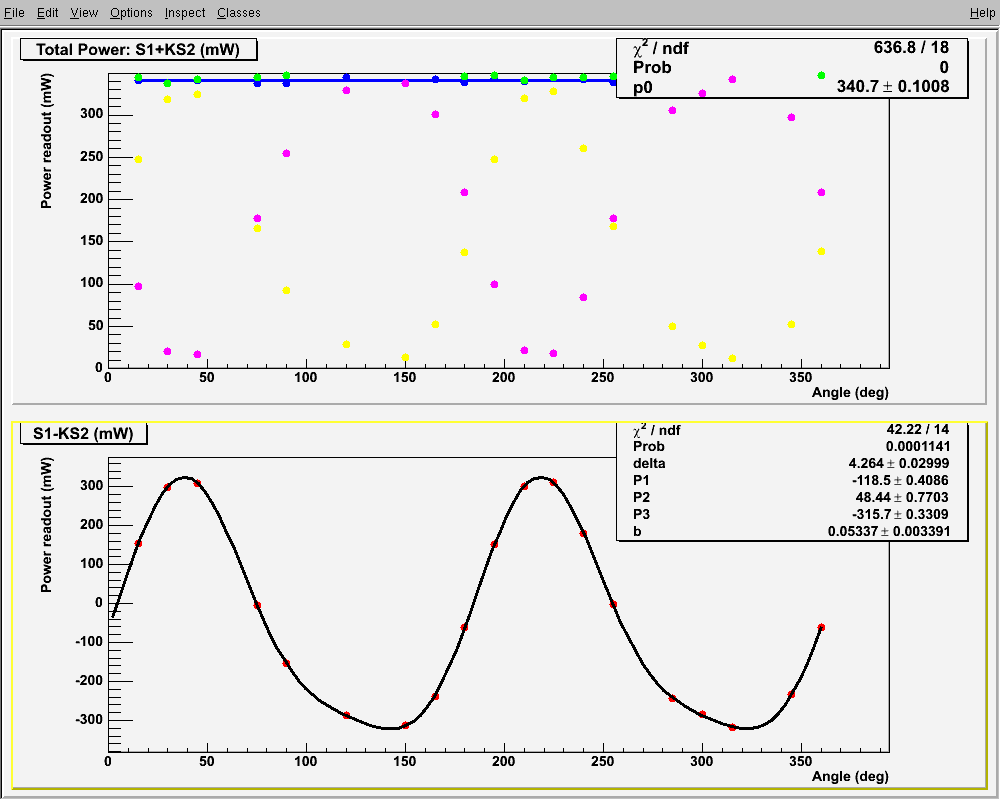

FIGURE 1

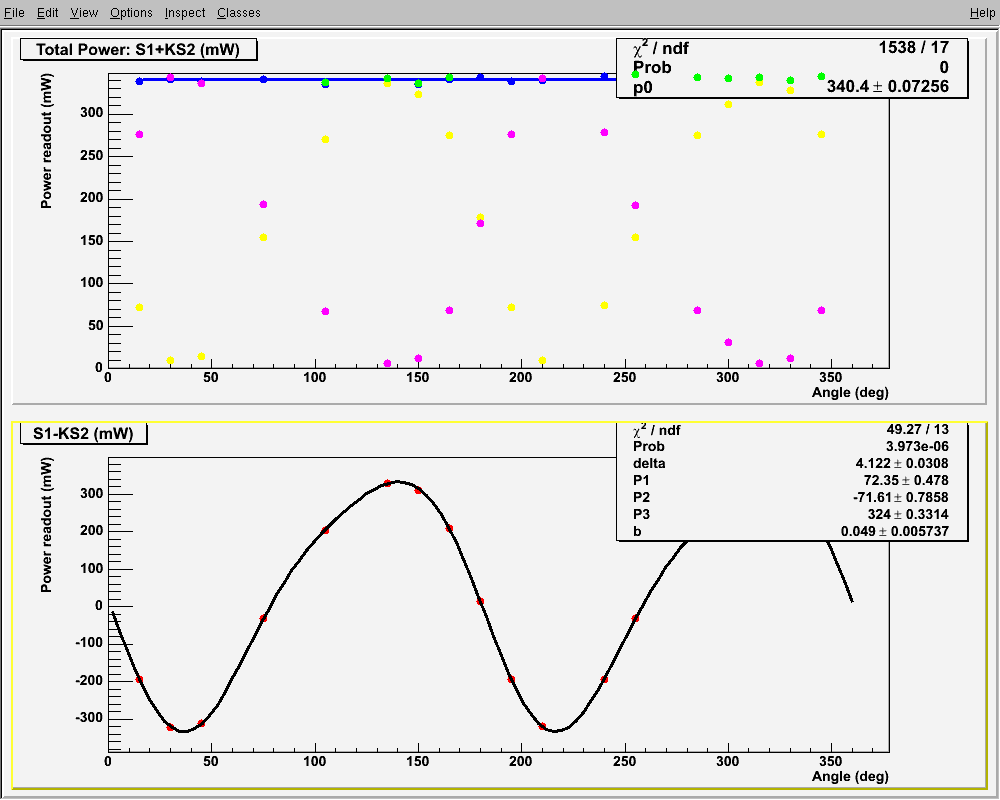

FIGURE 2
