Log entry time 16:09:29 on November30,2010
Entry number 342085

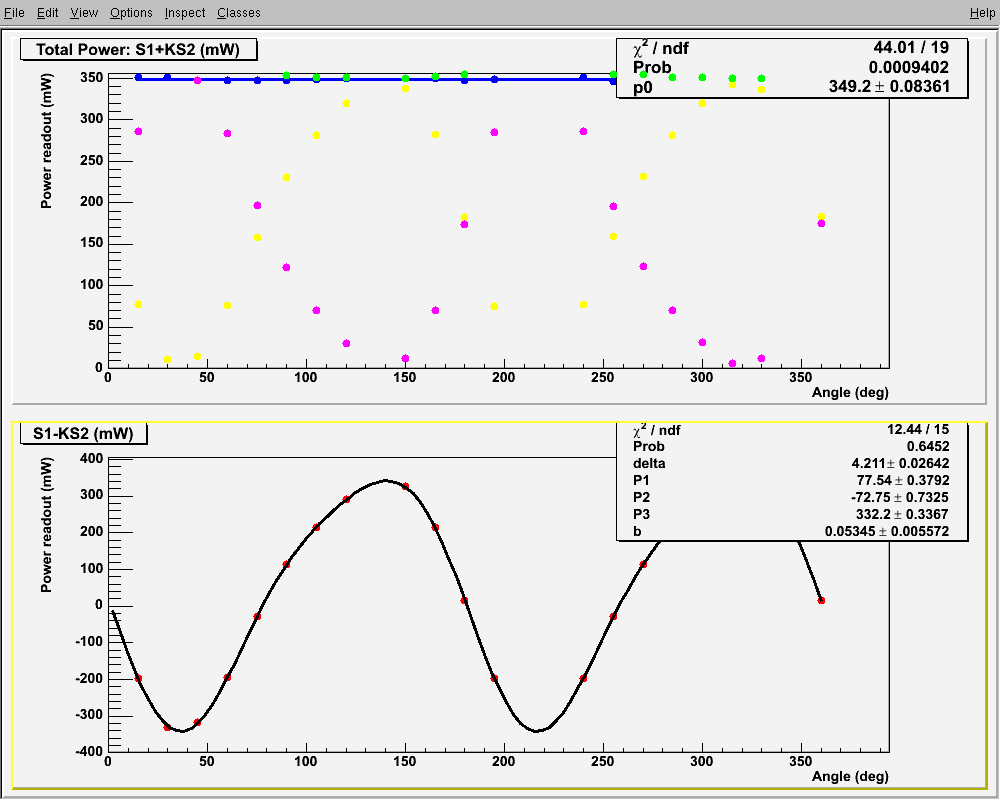

keyword=QWP scan for 11/30/2010Left State (Fig 1):
####### RESULTS ########
delta=4.21114 +/- 0.0264234 degree
Ellipse parameters:
Axis Ratio=0.729245 +/- 0.00118504
==> DOCP from ellipse param=95.2142 +/- 0.0472927 %
==> DOCP from Stokes param=95.1307 +/- 0.0990854 %
Angle=-21.589 +/- -0.160006 degrees
==> retardation error=3.40258 +/- 0.354696 %
Right state (fig 2):
####### RESULTS ########
delta=4.12679 +/- 0.0313048 degree
Ellipse parameters:
Axis Ratio=-0.671316 +/- 0.000976794
==> DOCP from ellipse param=-92.5528 +/- 0.050996 %
==> DOCP from Stokes param=-92.5229 +/- -0.0945965 %
Angle=79.2663 +/- -0.150357 degrees
==> retardation error=3.43153 +/- 0.209827 %
FIGURE 1
FIGURE 2
