For use with TO-220 packages

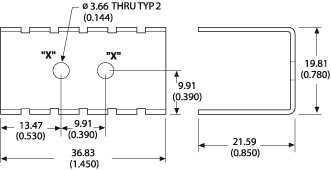

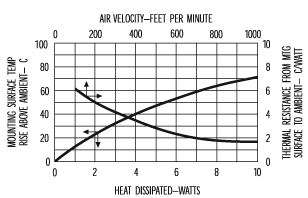

Part Number - 504222B00000G Mechanical Outline Drawing Thermal Curves Thermal Resistance 6.40 Thermal resistance value is based on a 75°C rise in natural convection Product Information Part # Description Finish Board Mounting 504222B00000G Economy narrow base channel style heat sink for dual devices Black Anodize N/A Not Exactly what you need? We offer several options for those applications which require a more unique solution. For slight modifications of this part or other attachment options, finishes, and interface materials, contact your local representative. Challenge us with your thermal requirements - we can design custom solutions. For technical help with our Standard Products, please call (603) 224-9988, or contact your Aavid Sales Rep Email: info@aavid.com Visit us at www.aavidthermalloy.com  •  ©2009 Aavid Thermalloy, LLC
