Acopian linear Gold Box

Gold Box
LINEAR REGULATED
AC-DC single output

Series A
High Performance (model numbers begin with the letter A)

Shipped Within 3 Days
U.L. Recognized
CE Certified
Five Year Warranty

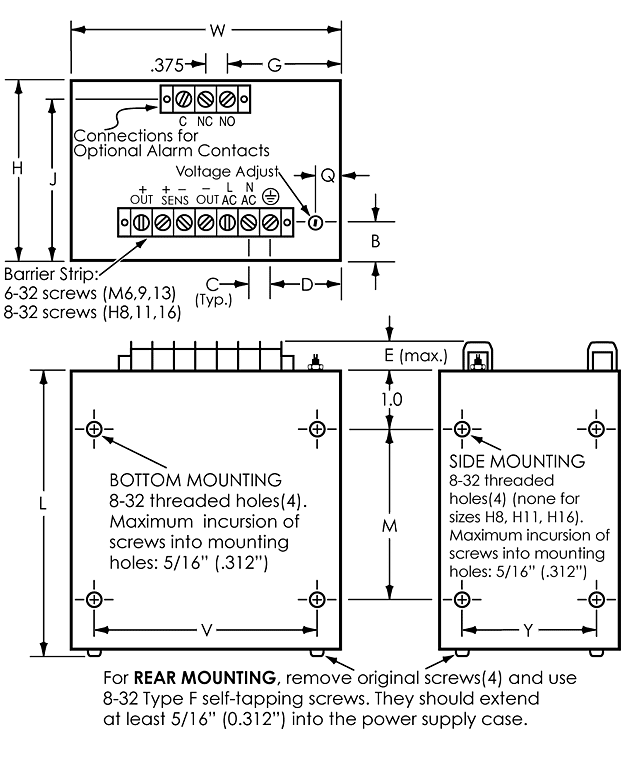

DRAWING

(All dimensions in inches.)

Case |      |     |     |     |     |     |     |     |     |     |     |     |     |  Approx.
Size |  L   |  W  |  H  |  M  |  V  |  Y  |  E  |  Q  |  B  |  C  |  D  |  G  |  J  |  Weight
-----|------|-----|-----|-----|-----|-----|-----|-----|-----|-----|-----|-----|-----|-------------
M6     6.59  5.12  3.44   4.0   4.5   3.0   .58   .5    .75  .375  1.44  2.19  3.09    4 lb. 4 oz.
--------------------------------------------------------------------------------------------------
M9     9.25  5.12  3.44   6.0   4.5   3.0   .58   .5    .75  .375  1.44  2.19  3.09    7 lb. 4 oz.
--------------------------------------------------------------------------------------------------
M13   13.25  5.12  3.44  10.0   4.5   3.0   .58   .5    .75  .375  1.44  2.19  3.09   11 lb.
--------------------------------------------------------------------------------------------------
H8     8.75  7.37  5.12   6.0   6.75  4.56  .78  1.12  1.25  .562  2.25  3.57  4.72   15 lb. 8 oz.
--------------------------------------------------------------------------------------------------
H11   11.25  7.37  5.12   8.0   6.75  4.56  .78  1.12  1.25  .562  2.25  3.57  4.72   18 lb. 4 oz.
--------------------------------------------------------------------------------------------------
H16   16.00  7.37  5.12  11.0   6.75  4.56  .78  1.12  1.25  .562  2.25  3.57  4.72   26 lb.
--------------------------------------------------------------------------------------------------
