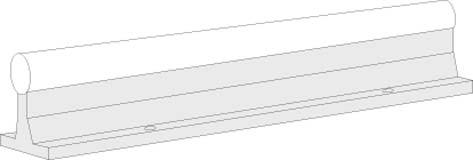

Shaft
Rail Assemblies - Standard |
| Dimensions |
 | |
|
|
| PartNumber |
Nominal
Diameter |
X |
Y |
A |
A1
(+/- 0.002) |
E |
H
(+/- 0.002) |
H1 |
M |
N1
Bolt |
N3
Hole |
N3
Bolt |
Length |
Maximum
Length (in) |
| SRA-10 |
0.625 |
4 |
2 |
1.63 |
0.813 |
1.13 |
1.125 |
0.25 |
0.31 |
#8-32 x .88
|
0.19 |
#8 |
24 |
72 |
| SRA-12 |
0.750 |
6 |
3 |
1.75 |
0.813 |
1.25 |
1.500 |
0.25 |
0.38 |
#10-32 x 1.25
|
0.22 |
#10 |
24 |
72 |
| SRA-16 |
1.000 |
6 |
3 |
2.13 |
1.063 |
1.50 |
1.750 |
0.25 |
0.50 |
1/4-20 x 1.5
|
0.28 |
1/4 |
24 |
72 |
| SRA-20 |
1.250 |
6 |
3 |
2.50 |
1.250 |
1.88 |
2.125 |
0.31 |
0.56 |
5/16-18 x 1.75
|
0.34 |
5/16 |
24 |
72 |
| SRA-24 |
1.500 |
8 |
4 |
3.00 |
1.500 |
2.25 |
2.500 |
0.38 |
0.69 |
3/8-16 x 2.00
|
0.34 |
5/16 |
24 |
72 |
| SRA-8 |
0.500 |
4 |
2 |
1.50 |
0.750 |
1.00 |
1.125 |
0.19 |
0.25 |
#6-32 x .88
|
0.17 |
#6 |
24 |
72 |
| SRA-32 |
2.000 |
8 |
4 |
|
1.875 |
2.75 |
3.250 |
0.50 |
0.88 |
1/2-13 x 2.500
|
0.41 |
3/8 |
24 |
72
| | |
