| Dimensions (mm) | 12.5 x 25 |
| Dimensional Tolerance (mm) | ±0.5 |
| Clear Aperture (%) | 90 |
| Thickness (mm) | 9.5 |

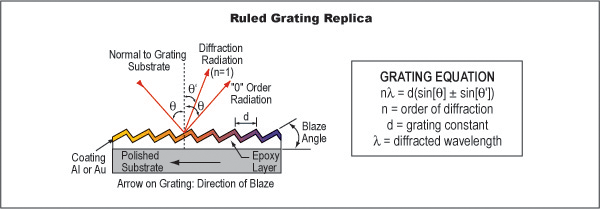

| Blaze Angle | 17° 27' |

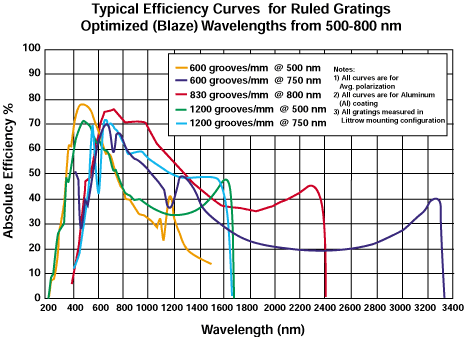

| Absolute Diffraction Efficiency (%) | 60-80 @ Blaze Wavelength |
| Design Wavelength DWL (nm) | 500 |
| Coating | Bare Aluminum |
| Direction of Grooves | Parallel to Short Dimension |
| Groove Density (grooves/mm) | 1200 |
| RoHS | Compliant |
