15mm Diameter, BOROFLOAT™ Window, Uncoated
| Diameter (mm) | 15.00 |
| Thickness (mm) | 1.75 |
| Index of Refraction nd | 1.472 |
| Design Wavelength DWL (nm) | 350 - 2000 |
| Abbe Number (vd) | 65.65 |
| Coating | Uncoated |

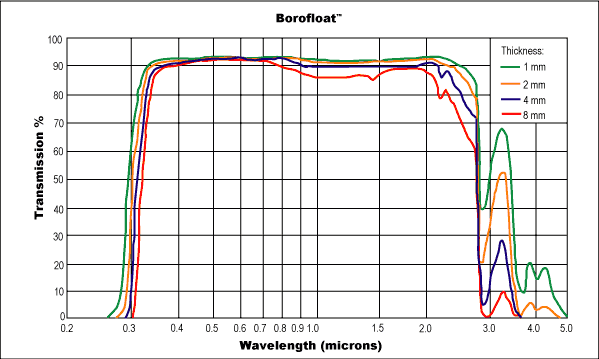

| Transmission (%) | 90 |
| Surface Accuracy (λ) | 4 - 6 per inch |
| Coefficient of Thermal Expansion CTE (10-6/°C) | 3.25 |
| Operating Temperature (°C) | 1 hour @ 500; >100 hours @ 450 |
| Resistance to Temperature Difference (K) | 1 hour @ 110; 1-100 hours @ 90; >100 hours @ 80 |
| Thermal Shock (K) | 175 |
| Surface Quality | 80-50 |
| Diameter Tolerance (mm) | ± 0.5 |
| Thickness Tolerance (mm) | ± 0.2 |
| Transformation Temperature (°C) | 530 |
| Modulus of Elasticity (kN/mm2) | 63 |
| Density (g/cm3) | 2.2 |
| Poisson's Ratio | 0.2 |
| Stress-Optical Coefficient (mm2/N) | 4 x 10-6 |
| RoHS | Compliant |
