24PCDFA6D
Pressure Sensors: Measurement Type: Gage, Vacuum Gage, Wet/Wet Differential; Signal Conditioning: Unamplified; Pressure Range: ± 30.0 psi; Port Style: Straight
Features
  • True wet/wet differential sensing
  • Miniature package
  • Variety of gage pressure port configurations - easily and quickly modified for your special needs
  • Operable after exposure to frozen conditions
  • Choice of termination for gage sensors
  • 2 mA constant current excitation significantly reduces sensitivity shift over temperature
  • Can be used to measure vacuum or positive pressure
Typical Applications
Medical
  • Oxygen and nitrogen gas distribution in hospitals
  • Dental chairs
Environmental
  • Water control valves
  • Instrumentation
  • Irrigation equipment
  • Filter monitoring equipment
Industrial Instrumentation
  • Robotics
  • Pressure valves
  • Leak detection
  • Air compressors
Analytical Instrumentation
  • Gas chromatography
Description
The 24PC Series miniature pressure sensors provide reliable differential pressure sensing performance in a compact package. The sensor features a proven sensing technology that utilizes a specialized piezoresistive micro-machined sensing element. The low power, non-amplified, non-compensated Wheatstone bridge circuit design provides inherently stable mV outputs over 0.5 psi through 250 psi sensing ranges.

24PCDFA6D
Pressure Sensors: Measurement Type: Gage, Vacuum Gage, Wet/Wet Differential; Signal Conditioning: Unamplified; Pressure Range: ± 30.0 psi; Port Style: Straight
Product Specifications
  Measurement Type   Gage, Vacuum Gage, Wet/Wet Differential
  Signal Conditioning   Unamplified
  Pressure Range   ± 30.0 psi
  Maximum Overpressure   60.0 psi
  Supply Voltage   10.0 Vdc typ., 12.0 Vdc max.
  Compensated   No
  Output Calibration   No
  Response Time   1 ms max.
  Termination   PCB; 1 x 4; 0.600 in
  Port Style   Straight
  Package Style   Honeywell - 20PC
  Linearity   ± 0.25% span typ., ± 1.0% span max. (P2 > P1)
  Typical Sensitivity   11 mV/psi
  Full Scale Span   330 mV typ.
  Null Offset   -16 mV typ.
  Null Shift over Temperature   ± 2.0 mV typ.
  Span Shift Over Temperature   ± 5.0% span typ.
  Repeatability & Hysteresis Error   ± 0.15% span typ.
  Operating Temperature Range   -40 °C to 85 °C [-40 °F to 185 °F]
  Storage Temperature Range   -55 °C to 100 °C [-67 °F to 212 °F]
  Media Compatibility   Limited only to those media which will not attack polyetherimide, silicon, fluorosilicone, silicone, EPDM, and neoprene seals.
  Input Resistance   4.0 kOhms min., 5.0 kOhms typ., 6.0 kOhms max.
  Output Resistance   4.0 kOhms min., 5.0 kOhms typ., 6.0 kOhms max.
  Shock   Qualification tested to 150 g
  Vibration   MIL-STD-202 Method 213 (150 g half sine 11 ms)
  Weight   2 g [0.07 oz]
  UNSPSC Code   411121
  UNSPSC Commodity   411121 Transducers
  Availability   Global
  Series Name   24PC Series

24PCDFA6D
Pressure Sensors: Measurement Type: Gage, Vacuum Gage, Wet/Wet Differential; Signal Conditioning: Unamplified; Pressure Range: ± 30.0 psi; Port Style: Straight

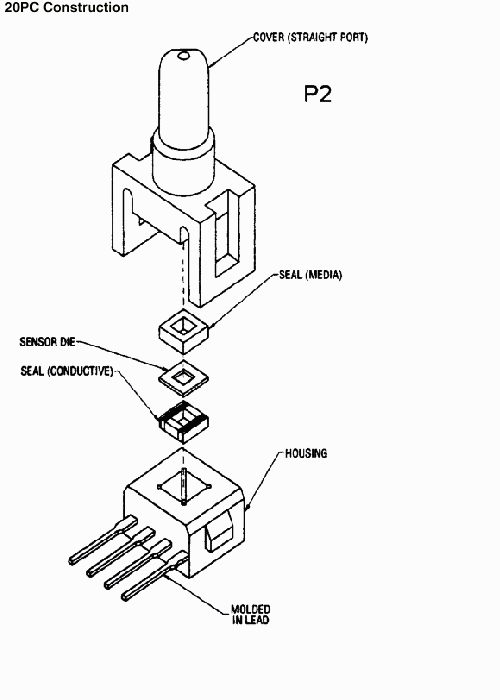

[Construction]

24PCDFA6D
Pressure Sensors: Measurement Type: Gage, Vacuum Gage, Wet/Wet Differential; Signal Conditioning: Unamplified; Pressure Range: ± 30.0 psi; Port Style: Straight

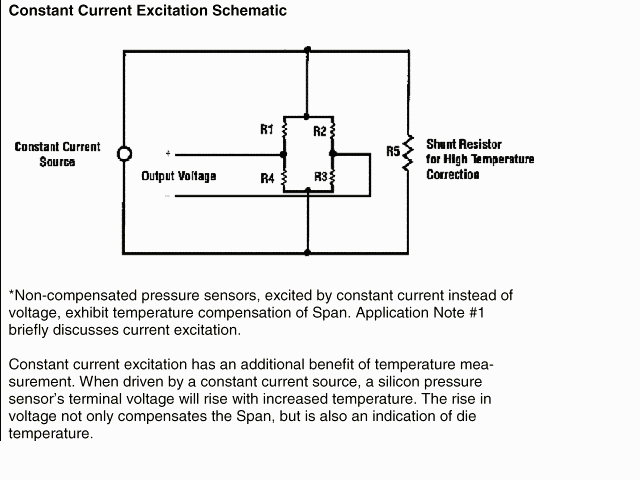

[Constant Current Excitation Schematic]


24PCDFA6D
Pressure Sensors: Measurement Type: Gage, Vacuum Gage, Wet/Wet Differential; Signal Conditioning: Unamplified; Pressure Range: ± 30.0 psi; Port Style: Straight

PERSONAL INJURY
DO NOT USE these products as safety or emergency stop devices, or in any other application where failure of the product could result in personal injury.

Failure to comply with these instructions could result in death or serious injury.



MISUSE OF DOCUMENTATION
  • The information presented in this product sheet (or catalog) is for reference only. DO NOT USE this document as product installation information.
  • Complete installation, operation and maintenance information is provided in the instructions supplied with each product.
Failure to comply with these instructions could result in death or serious injury.

© Copyright Honeywell Inc.1998-2004 All rights reserved.
