CH/CV Heatsink, Thermal Interface, Parallel Operation

Mechanical Configurations

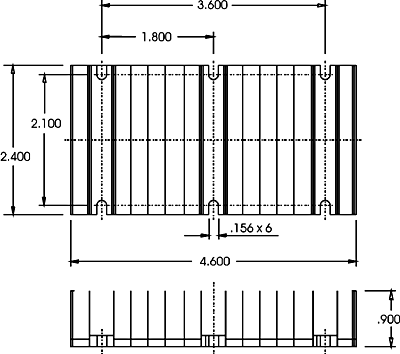

CH  HEATSINK


All dimensions are in inches  ()=MM
Typical Weight: 145 Grams

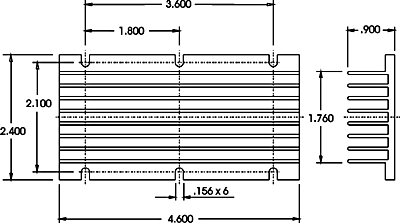

CV  HEATSINK


Typical Weight:  145 Grams


TYPE CH

$19.75

TYPE CV

$19.75

TYPE TI

$2.50

Note: For additional Heatsink options, consult factory.

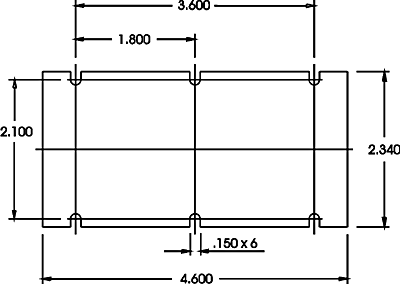

Thermal Interface

PART TI = THERMAL INTERFACE
Alloy Aluminum Substrate
Thermal Conductivity (BTU-in/hr sq.ft ° F): 1530
Coefficient of Thermal Expansion (25-100° C, 10 {to the neg. 6th} in-in/° F): 13.1
Hardness, Brinnell B: 23
Endurance Limit, psi: 5000
Standard Thickness (inches): .002
