Series LP/LF/LM
Single, Dual, and High Voltage

Mechanical Configurations

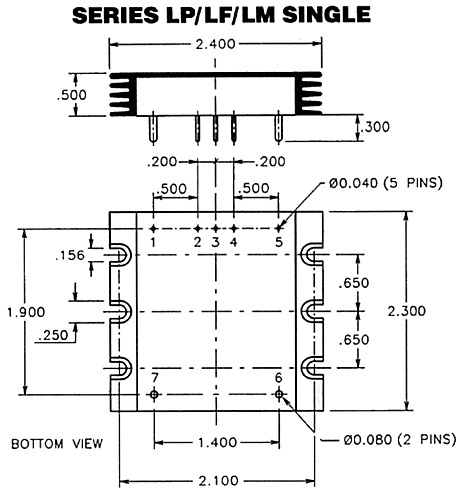

SERIES LP/LF/LM SINGLE
PIN
No. 		SINGLE
1 + INPUT
2 TRIM DOWN
3 TRIM
4 SHUT DOWN
5 -INPUT
6 -OUTPUT
7 +OUTPUT
Typical Weight: 110 Grams

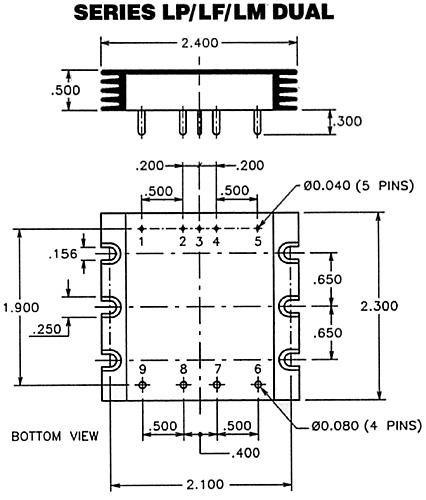

SERIES LP/LF/LM DUAL
Pin No. DUAL
1 +INPUT
2 TRIM DOWN
3 TRIM
4 SHUT DOWN
5 -INPUT
6 -OUTPUT 1
7 + OUTPUT 1
8 -OUTPUT 2
9 + OUTPUT 2
TYPICAL WEIGHT 135 GRAMS



SERIES LP/LF/LM HIGH VOLTAGE
PIN
No.		 HIGH
VOLTAGE
1 + INPUT
2 TRIM DOWN
3 TRIM
4 TRIM UP
5 SHUT DOWN
6 - INPUT
7 - OUTPUT
8 + OUTPUT

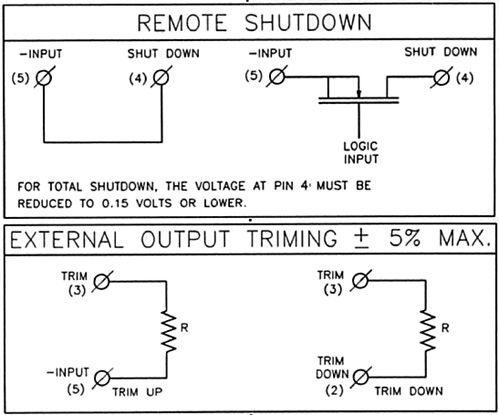

*Typical Resistance Range for Trim Up and Trim Down
% 1 2 3 5
Resistance
Trim
Trim Up 300K 150K 50K 20K
Trim Down 1M 500K 250K 100K
*These units are typical resistance values, as each individual unit will vary slightly.
Use of trim pot to determine resistance value is recommended.
Use 1/2 watt minimum power rating resistor.
