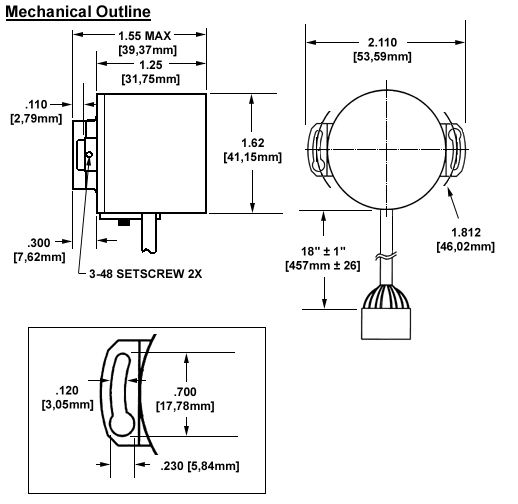

MECHANICAL:
Outer Diameter: 1.62 inches [41,15mm]
Height: 1.55" max [39,37mm]
Shaft Dia: 3/16 to 1/2 inch [4,76 to 12,7mm]
Weight: 3.75 oz [107g]
Slew Speed: 6000 rpm [628 rad/sec]
Bore Material: Stainless Steel
Base Material: Aluminum
Cover Material: Glass filled Polycarbonate
Starting Torque: 0.5 oz-in [3.5 X 10E-3 N-M] @ 25°C
Bearing Life: 2 billion revolutions (90% life)
[1,26 x 10E10 radians]
ELECTRICAL:
Output: Square wave two channel quadrature
with index (gating options available)
Input Power: 5 VDC ±5%
Output Format: TI AM26LS31CD or LM2901
Min Edge Separation: 45° (all channels)
Freq Response: Up to 200 KHz
ENVIRONMENTAL:
Operating Temp: -10°C to +100°C
Storage Temp: -30°C to +110°C
Shock: 50 G's for 11 mSec
Vibration: 5 - 2000 Hz @ 10 G's
IP Rating: IP 40
Humidity: 90% relative (non condensing)
RESOLUTIONS:
Range: 16 to 1250
Currently available: 16, 24, 32, 50, 60, 75, 90,
100, 120, 127, 128, 150, 200,
225, 245, 250, 256. 300, 312,
360, 471, 480, 500, 512, 540,
600, 635, 640, 647, 720, 800,
900, 1000, 1024, 1250

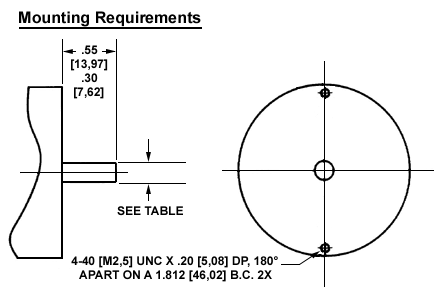

HUB SIZE: (shown in inches)[metric]
Specify Hub Bore (+.0005/-.0000)[+0,013mm/-0,000mm]
_______ ________
3/16 .1877 [4,77mm]
1/4 .2502 [6,35mm]
3/8 .3752 [9,53mm]
5MM .1970 [5,00mm]
6MM .2364 [6,00mm]
8MM .3151 [8,00mm]
10MM .3939 [10,00mm]
TERMINATION OPTIONS:
Round Cable
__________________________
CA18 Wire
Pin Function Color
1 +VCC Red
2 GND Blk
3 CH A Wht
4 CH A NOT Yel
5 CH B Grn
6 CH B NOT Blu
7 INDEX Orn
8 INDEX NOT Brn
OUTPUT INTERFACE OPTIONS:
VC
LD
OUTPUT INTERFACES:

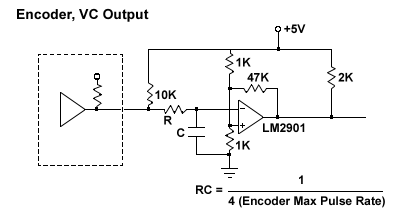

VC (VOLTAGE COMPARATOR)
No complementary signals available
5 VDC power input TTL compatible (+12V available)
Output sinks 6mA
Nominal power requirements 75mA

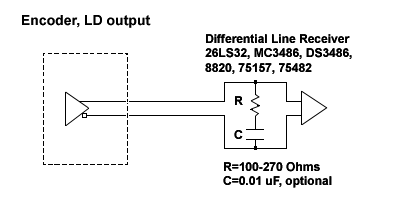

LD (LINE DRIVER TI AM26LS31CD typical output)
26LS32 typical line receiver suggested for user interface
Output sinks and sources 20mA
Nominal power requirements 135mA
GATING OPTIONS:
Specify Gating Option Index Width
_______ _____________ ___________
0 Ungated 360° ± 20%
1 Gated W/A&B 90° ± 45°

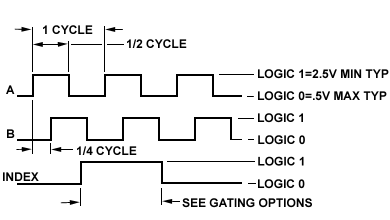

OUTPUT CONFIGURATION:
Minimum transition to transition edge separation
of A and B is 45° over operating temperature and
frequency. Complementary outputs are not shown for
simplicity. CCW viewing encoder top.
