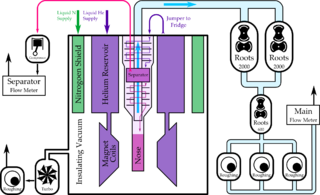

Example pumping diagram for the target. The actual pumps used in the hall differ from these slightly. J. Maxwell.
