User name V. Sulkosky
Log entry time 17:15:23 on October23,2007
Entry number 209358
This entry is a followup to: 209338

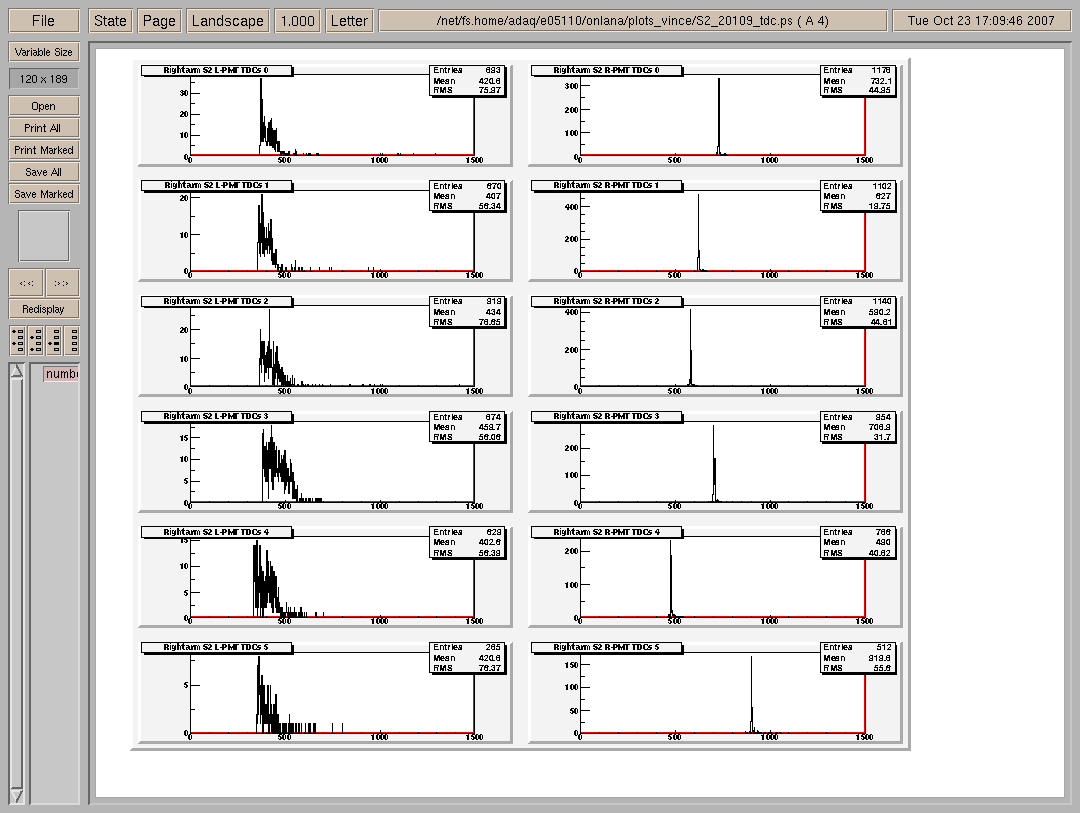

keyword=S2 TDC Spectra (HRSR)Figure 1 shows the TDC spectra after the width was increased on the
4413 discriminator that is used for S2. The width was too narrow
(56 ns) and was increased to ~ 100 ns. This resulted in the double
peak structure seen in Halog entry # 209338. The self-timing of S2
should be fine now.
FIGURE 1
