Log entry time 14:57:27 on April 27, 2009

Entry number 269140

This entry is a followup to: 269044

Followups:

• 269143 04/27/09 15:19 R. Michaels scaler synch

I looked at the special run 1548 that Bo took last night with left and
right arm synchronized. The scaler reading in the both arm seems to be
not in sync.

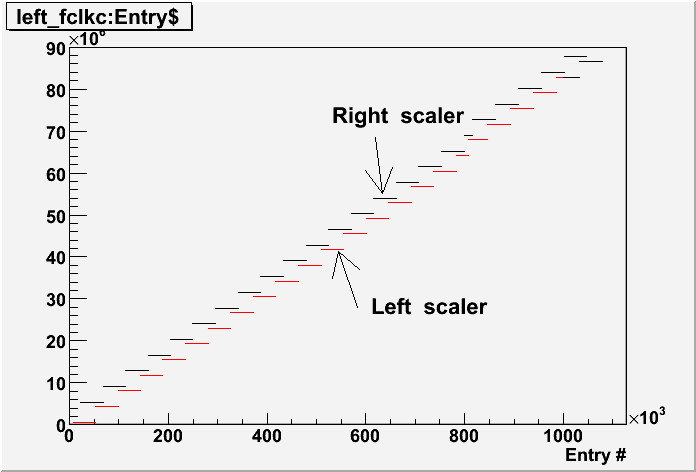

- Plot 1 shows the fast clock (103.7kHz) counts vs entry number for left
and right arm.

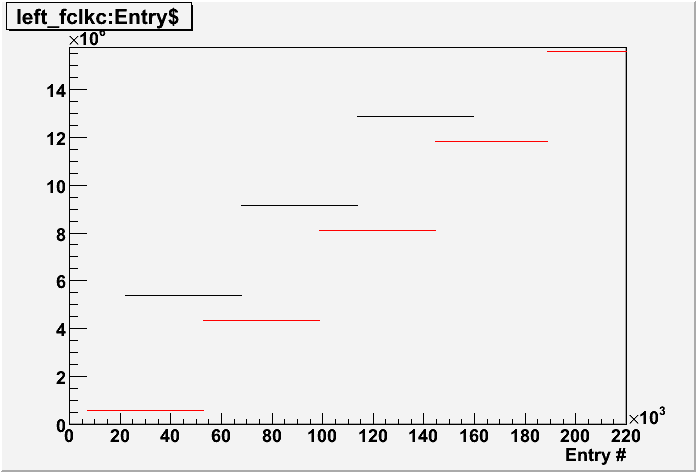

- Plot 2 is the zoomed in version of the plot 1.

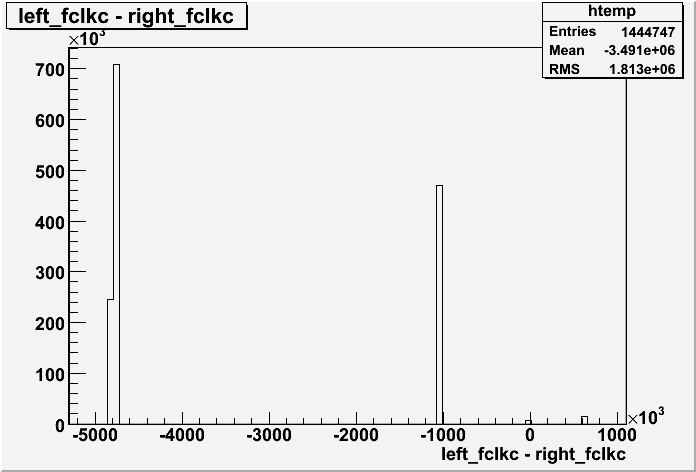

- Plot 3 is the difference between left and right fast clock counts.

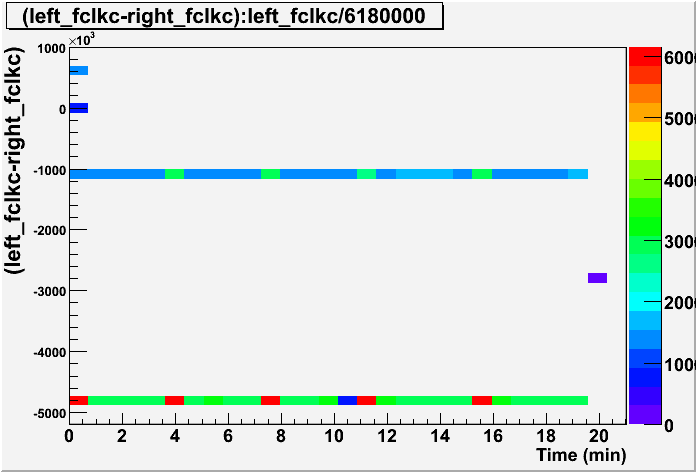

- Plot 4 shows the difference between left and right fast clock signal vs
time.

All these plots are with full run.

Plot 2 clearly shows that scaler event for left and right arm are not
inserted at the same time, there is some overlap - could be hardware setup?

Figure 1

Figure 2

Figure 3

Figure 4
