    User name deng/dwang

    Log entry time 05:17:10 on November 29, 2009

    Entry number 303454

    This entry is a followup to: 303393


    keyword=HRS bcm x3 scaler saturation

    Two long HRS runs have been analyzed, which are 25848 and 5405. The
    following plots show the scaler overflow problem that Bob mentioned for
    bcm x3. Also for the right arm, bcmu1 is not plugged in or the scaler map
    is wrong, which leads the average current reading from bcm x1 to be half
    the actual beam current. (In detail, the average current is calibrated by
    the average of bcm u1 and d1).

    A copy of this log entry has been emailed to: rom

    Left arm bcms

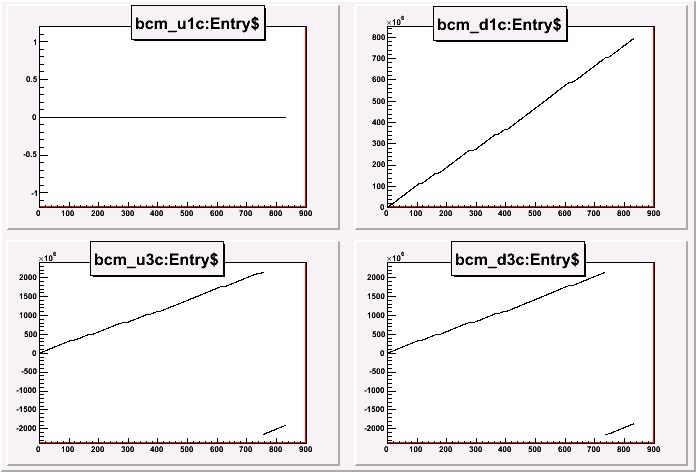

    Right arm bcms
