This page has been moved to in the new SoLID Wiki. Please do not edit this page.


The Largeangle Calorimeter (LC) provides particle ID for the large acceptance region of SIDIS SoLID experiments.

  • Preshower- shower configuration
  • Incidental momentum 3~7 GeV/c
  • Provide a pion rejection factor of 200:1
  • coverage: 13~22 degree (CDF design)
  • In 1.5T field
  • Radiation hard
  • Better be thin, small radiation length


Option: W-SciFi



Simulation tools:

  • SVN source [1]
  • Adopted from [angle calorimeter simulation]
  • Added support for
    • Set field from mac script: ex. mac/TestFile.mac
    • Added hadron simulation, beam of pion, kaon from mac script: ex. mac/TestFile.mac
    • Added option for preshower - shower confirguration: switch configurations at src/CaloSimDetectorConstruction.C::Construct()
    • Script tools to convert GEMC phase space to input file and load via mac scripts: high level script at script/GEMC2CaloSimScript.C

Initial Studies

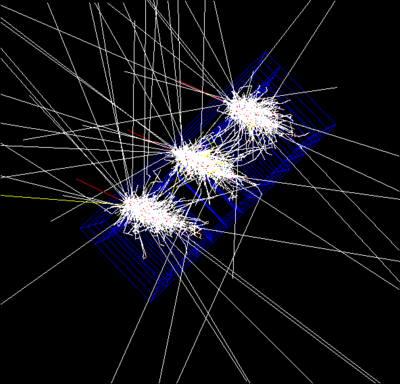

3 electrons in LC with 1.5T magnetic field
E/p for LC; Left: pi-; Right: electron; BaBar flat phase space
  • Shower Only Configuration
    • Simulated w/ 1.5T field; fiber is along the field direction; W plate is placed along the azimuthal direction.
    • E/p plot is shown on the right
    • Reasonable Pion electron separation

Option: Shashlyk Calorimeter


Light Collection and Detection

Option: outside PMT w/ Fiber extension

Option: GEM PMT

Option: Silicon based PMT

Popular choice but not a good one for LC, due to high background.


FPGA based waveform digitalizer?
