MollerGlobalMagnetField Class Reference

Set in MollerDetectorConstruction as the field manager. More...

#include <MollerGlobalMagnetField.hh>

Collaboration diagram for MollerGlobalMagnetField:

Public Member Functions
	MollerGlobalMagnetField ()
	~MollerGlobalMagnetField ()
void	SetHybridMapFile (const G4String &)
void	SetUpstreamMapFile (const G4String &)
void	ReadMagneticField ()
void	GetFieldValue (const G4double Point[4], G4double *Bfield) const
Private Attributes
MollerMagnetFieldMap *	fMagneticField_MainMagnet
MollerMagnetFieldMap *	fMagneticField_MiniMagnet
MollerGlobalMagnetFieldMessenger *	fieldMessenger
G4double	BFieldScalingFactor_MainMagnet
G4double	BFieldScalingFactor_MiniMagnet
G4String	upstreamFilename
G4String	hybridFilename

Detailed Description

Set in MollerDetectorConstruction as the field manager.

MollerGlobalMagnetField::MollerGlobalMagnetField() sets the field map names, initializes the grid after setting the min and max r, z, phi, and reads in the maps. MollerGlobalMagnetField::GetFieldValue() adds the field value for the hybrid and upstream toroids from MollerMagnetFieldMap::GetFieldValue (which does the interpolation) during tracking.

Definition at line 69 of file MollerGlobalMagnetField.hh.

Constructor & Destructor Documentation

MollerGlobalMagnetField::MollerGlobalMagnetField ( )

Definition at line 47 of file MollerGlobalMagnetField.cc.

References fieldMessenger, fMagneticField_MainMagnet, and fMagneticField_MiniMagnet.

00048 {
00049
00050   G4cout << G4endl << "###### Calling MollerGlobalMagnetField::MollerGlobalMagnetField() " << G4endl << G4endl;
00051
00052   fieldMessenger = new MollerGlobalMagnetFieldMessenger(this);
00053
00054   G4String fPath = ".";
00055   if (getenv("MOLLERGEANTDIR"))
00056     fPath = getenv("MOLLERGEANTDIR");
00057   else
00058     G4cout << "You do not have MOLLERGEANTDIR defined in your environment!" << G4endl;
00059
00060
00061   fMagneticField_MainMagnet = NULL;
00062   fMagneticField_MiniMagnet = NULL;
00063
00064 }

MollerGlobalMagnetField::~MollerGlobalMagnetField ( )

Definition at line 147 of file MollerGlobalMagnetField.cc.

References fieldMessenger, fMagneticField_MainMagnet, and fMagneticField_MiniMagnet.

00148 {
00149   if (fMagneticField_MainMagnet) delete fMagneticField_MainMagnet;
00150   if (fMagneticField_MiniMagnet) delete fMagneticField_MiniMagnet;
00151
00152   delete fieldMessenger;
00153 }

Member Function Documentation

void MollerGlobalMagnetField::GetFieldValue	(	const G4double	Point[4],
		G4double *	Bfield
	)			const

Definition at line 156 of file MollerGlobalMagnetField.cc.

References BFieldScalingFactor_MainMagnet, BFieldScalingFactor_MiniMagnet, fMagneticField_MainMagnet, fMagneticField_MiniMagnet, and MollerMagnetFieldMap::GetFieldValue().

00157 {
00158
00159   G4double myLocalPointInMainMagnet[4];
00160   G4double myLocalPointInMiniMagnet[4];
00161
00162   G4double myLocalBfieldInMainMagnet[3];
00163   G4double myLocalBfieldInMiniMagnet[3];
00164
00165   //---------------------------------------------------------------
00166   // translation from global Point[4] into local magnet coordinates
00167   //---------------------------------------------------------------
00168   //
00169   // No translation needed because for now, map is created with actual z positions
00170   // If add command to move fields, would do it here.
00171
00172   myLocalPointInMainMagnet[0] = Point[0];             // x-pos
00173   myLocalPointInMainMagnet[1] = Point[1];             // y-pos
00174   myLocalPointInMainMagnet[2] = Point[2];             // z-pos
00175   myLocalPointInMainMagnet[3] = Point[3];             // time
00176
00177   myLocalPointInMiniMagnet[0] = Point[0];             // x-pos
00178   myLocalPointInMiniMagnet[1] = Point[1];             // y-pos
00179   myLocalPointInMiniMagnet[2] = Point[2];             // z-pos
00180   myLocalPointInMiniMagnet[3] = Point[3];             // time
00181
00182
00183   //     G4cout << " X pos [cm] = " << Point[0]/cm << " ,Y pos [cm] = " << Point[1]/cm << " ,Z pos [cm] = " << Point[2]/cm << G4endl;
00184
00185
00186   if(fMagneticField_MiniMagnet && fMagneticField_MainMagnet){
00187     fMagneticField_MiniMagnet->GetFieldValue( myLocalPointInMiniMagnet, myLocalBfieldInMiniMagnet );
00188     fMagneticField_MainMagnet->GetFieldValue( myLocalPointInMainMagnet, myLocalBfieldInMainMagnet );
00189
00190     Bfield[0] = myLocalBfieldInMainMagnet[0]*BFieldScalingFactor_MainMagnet + myLocalBfieldInMiniMagnet[0]*BFieldScalingFactor_MiniMagnet;
00191     Bfield[1] = myLocalBfieldInMainMagnet[1]*BFieldScalingFactor_MainMagnet + myLocalBfieldInMiniMagnet[1]*BFieldScalingFactor_MiniMagnet;
00192     Bfield[2] = myLocalBfieldInMainMagnet[2]*BFieldScalingFactor_MainMagnet + myLocalBfieldInMiniMagnet[2]*BFieldScalingFactor_MiniMagnet;
00193     //     printf("%f %f %f %f %f %f %f %f %f %f %f %f\n",Point[0],Point[1],Point[2],
00194     //     myLocalBfieldInMainMagnet[0]*100,myLocalBfieldInMiniMagnet[0]*100,Bfield[0]*100,
00195     //     myLocalBfieldInMainMagnet[1]*100,myLocalBfieldInMiniMagnet[1]*100,Bfield[1]*100,
00196     //     myLocalBfieldInMainMagnet[2]*100,myLocalBfieldInMiniMagnet[2]*100,Bfield[2]*100);
00197   }
00198   else if(fMagneticField_MainMagnet && !fMagneticField_MiniMagnet){
00199     fMagneticField_MainMagnet->GetFieldValue( myLocalPointInMainMagnet, myLocalBfieldInMainMagnet );
00200
00201     Bfield[0] = myLocalBfieldInMainMagnet[0]*BFieldScalingFactor_MainMagnet;
00202     Bfield[1] = myLocalBfieldInMainMagnet[1]*BFieldScalingFactor_MainMagnet;
00203     Bfield[2] = myLocalBfieldInMainMagnet[2]*BFieldScalingFactor_MainMagnet;
00204   }
00205   else if(!fMagneticField_MainMagnet && fMagneticField_MiniMagnet){
00206     fMagneticField_MiniMagnet->GetFieldValue( myLocalPointInMiniMagnet, myLocalBfieldInMiniMagnet );
00207
00208     Bfield[0] =  myLocalBfieldInMiniMagnet[0]*BFieldScalingFactor_MiniMagnet;
00209     Bfield[1] =  myLocalBfieldInMiniMagnet[1]*BFieldScalingFactor_MiniMagnet;
00210     Bfield[2] =  myLocalBfieldInMiniMagnet[2]*BFieldScalingFactor_MiniMagnet;
00211   }
00212   else{
00213     Bfield[0] = 0.0*kilogauss;
00214     Bfield[1] = 0.0*kilogauss;
00215     Bfield[2] = 0.0*kilogauss;
00216   }
00217
00218   //   G4cout << "------------------------------------------------------------------------" << G4endl;
00219   //   G4cout << " X pos [cm] = " << Point[0]/cm << "  , with X BField [kG] = " << Bfield[0] << G4endl;
00220   //   G4cout << " Y pos [cm] = " << Point[1]/cm << "  , with Y BField [kG] = " << Bfield[1] << G4endl;
00221   //   G4cout << " Z pos [cm] = " << Point[2]/cm << "  , with Z BField [kG] = " << Bfield[2] << G4endl;
00222
00223 }

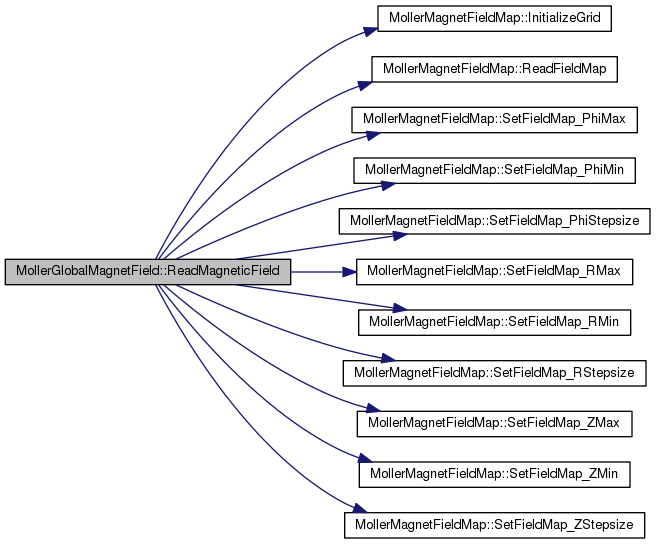

Here is the call graph for this function:

void MollerGlobalMagnetField::ReadMagneticField ( )

Definition at line 67 of file MollerGlobalMagnetField.cc.

Referenced by MollerDetectorConstruction::ReadGlobalMagneticField().

00068 {
00069
00070   G4String fPath = ".";
00071   if (getenv("MOLLERGEANTDIR"))
00072     fPath = getenv("MOLLERGEANTDIR");
00073   else
00074     G4cout << "You do not have MOLLERGEANTDIR defined in your environment!" << G4endl;
00075
00076   G4String upstreamFieldMap = (fPath+"/map_directory/"+upstreamFilename+".txt");
00077   G4String hybridFieldMap = (fPath+"/map_directory/"+hybridFilename+".txt");
00078
00079   G4cout<<"Field maps:"<<G4endl;
00080   G4cout<<upstreamFieldMap<<G4endl;
00081   G4cout<<hybridFieldMap<<G4endl;
00082
00083   BFieldScalingFactor_MainMagnet = 1.0; // default is 1.0 here
00084   fMagneticField_MainMagnet = new MollerMagnetFieldMap();
00085
00086   if(fMagneticField_MainMagnet){
00087
00088     fMagneticField_MainMagnet->SetFieldMap_RMin(0.015*m);
00089     fMagneticField_MainMagnet->SetFieldMap_RMax(0.375*m);
00090     fMagneticField_MainMagnet->SetFieldMap_RStepsize(0.002*m);
00091
00092     fMagneticField_MainMagnet->SetFieldMap_ZMin(9.5*m);
00093     fMagneticField_MainMagnet->SetFieldMap_ZMax(17.0*m);
00094     fMagneticField_MainMagnet->SetFieldMap_ZStepsize(0.1*m);
00095
00096     fMagneticField_MainMagnet->SetFieldMap_PhiMin(-25*degree);
00097     fMagneticField_MainMagnet->SetFieldMap_PhiMax(25*degree);
00098     fMagneticField_MainMagnet->SetFieldMap_PhiStepsize(1*degree);
00099
00100     fMagneticField_MainMagnet->InitializeGrid();
00101
00102     fMagneticField_MainMagnet->ReadFieldMap(hybridFieldMap);
00103     //fMagneticField_MainMagnet->PrintFieldCheck("magfieldcheck_back.txt");
00104   }
00105
00106   //---------------------------------------------------------------
00107   //    configuration values of the upstream field map
00108   //---------------------------------------------------------------
00109
00110   BFieldScalingFactor_MiniMagnet =  1.25; // default is 1.25 here
00111   fMagneticField_MiniMagnet = new MollerMagnetFieldMap();
00112
00113   if(fMagneticField_MiniMagnet){
00114
00115     fMagneticField_MiniMagnet->SetFieldMap_RMin(0.015*m);
00116     fMagneticField_MiniMagnet->SetFieldMap_RMax(0.375*m);
00117     fMagneticField_MiniMagnet->SetFieldMap_RStepsize(0.002*m);
00118
00119     fMagneticField_MiniMagnet->SetFieldMap_ZMin(6.0*m);
00120     fMagneticField_MiniMagnet->SetFieldMap_ZMax(8.0*m);
00121     fMagneticField_MiniMagnet->SetFieldMap_ZStepsize(0.1*m);
00122
00123     fMagneticField_MiniMagnet->SetFieldMap_PhiMin(-25*degree);
00124     fMagneticField_MiniMagnet->SetFieldMap_PhiMax(25*degree);
00125     fMagneticField_MiniMagnet->SetFieldMap_PhiStepsize(1*degree);
00126
00127     fMagneticField_MiniMagnet->InitializeGrid();
00128
00129     fMagneticField_MiniMagnet->ReadFieldMap(upstreamFieldMap);
00130
00131     //fMagneticField_MiniMagnet->PrintGridCheck("maggridcheck_front.txt");
00132   }
00133
00134   G4cout << G4endl << "###### Leaving MollerGlobalMagnetField::MollerGlobalMagnetField " << G4endl << G4endl;
00135 }

Here is the call graph for this function:

Here is the caller graph for this function:

void MollerGlobalMagnetField::SetHybridMapFile ( const G4String & nam )

Definition at line 136 of file MollerGlobalMagnetField.cc.

References hybridFilename.

Referenced by MollerGlobalMagnetFieldMessenger::SetNewValue().

00137 {
00138   hybridFilename = nam;
00139 }

Here is the caller graph for this function:

void MollerGlobalMagnetField::SetUpstreamMapFile ( const G4String & nam )

Definition at line 141 of file MollerGlobalMagnetField.cc.

References upstreamFilename.

Referenced by MollerGlobalMagnetFieldMessenger::SetNewValue().

00142 {
00143   upstreamFilename = nam;
00144 }

Here is the caller graph for this function:

Field Documentation

G4double MollerGlobalMagnetField::BFieldScalingFactor_MainMagnet [private]

Definition at line 93 of file MollerGlobalMagnetField.hh.

Referenced by GetFieldValue(), and ReadMagneticField().

G4double MollerGlobalMagnetField::BFieldScalingFactor_MiniMagnet [private]

Definition at line 94 of file MollerGlobalMagnetField.hh.

Referenced by GetFieldValue(), and ReadMagneticField().

MollerGlobalMagnetFieldMessenger* MollerGlobalMagnetField::fieldMessenger [private]

Definition at line 91 of file MollerGlobalMagnetField.hh.

Referenced by MollerGlobalMagnetField(), and ~MollerGlobalMagnetField().

MollerMagnetFieldMap* MollerGlobalMagnetField::fMagneticField_MainMagnet [private]

Definition at line 88 of file MollerGlobalMagnetField.hh.

Referenced by GetFieldValue(), MollerGlobalMagnetField(), ReadMagneticField(), and ~MollerGlobalMagnetField().

MollerMagnetFieldMap* MollerGlobalMagnetField::fMagneticField_MiniMagnet [private]

Definition at line 89 of file MollerGlobalMagnetField.hh.

Referenced by GetFieldValue(), MollerGlobalMagnetField(), ReadMagneticField(), and ~MollerGlobalMagnetField().

G4String MollerGlobalMagnetField::hybridFilename [private]

Definition at line 97 of file MollerGlobalMagnetField.hh.

Referenced by ReadMagneticField(), and SetHybridMapFile().

G4String MollerGlobalMagnetField::upstreamFilename [private]

Definition at line 96 of file MollerGlobalMagnetField.hh.

Referenced by ReadMagneticField(), and SetUpstreamMapFile().

The documentation for this class was generated from the following files:
